SKU: SB215-M2300

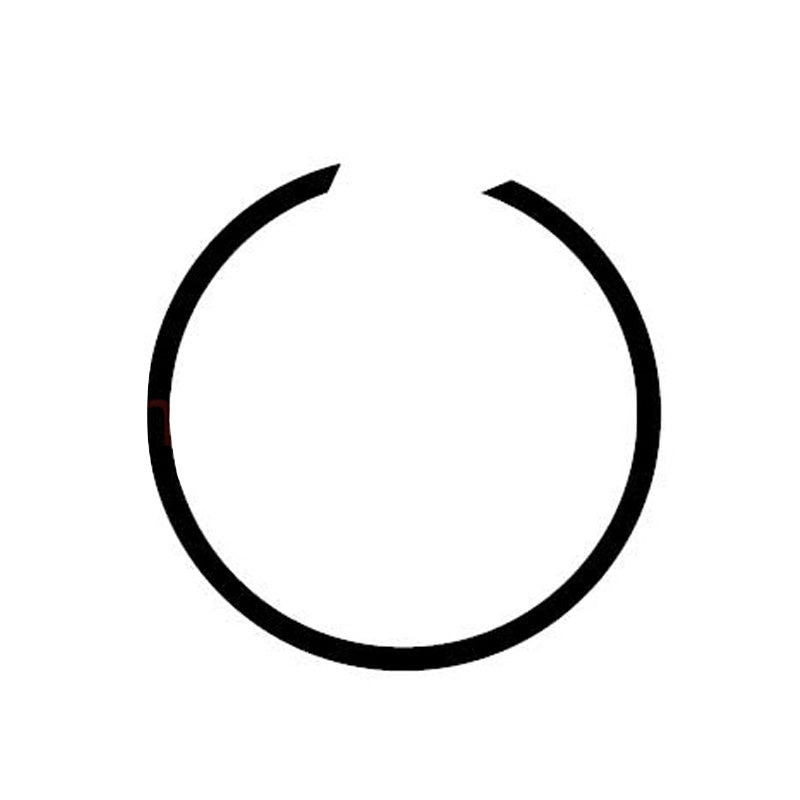

SB215 Snap Ring to Suit 215mm Bore
SB215 Snap Ring to Suit 215mm Bore
Regular price
€5,61
ex VAT
Regular price
Sale price
€5,61
ex VAT
Equivalent to: CFH215 CFH-215 2300-215 SB215 SB-215 M2300-215
In stock
Price Break
5+
€4,75
10+
€4,56
20+
€4,46
50+
€4,32
100+
€4,22
500+
€3,98
1000+
€3,36
Description
Description
Flat Wire Snap Rings for internal bores and housings: These snap rings are designed to fit into grooves machined into a bore or housing. Once fitted into the groove the portion of the ring protruding from the groove serves to retain components into place, one such example would be to position bearings in a housing by their outer raceway. It is not uncommon for 2 grooves to be machined in housing such that bearings can be installed up against the inner snap ring and then once the outer ring is fitted it is retained and located.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 45-52
Equivalent: CFH215 CFH-215 2300-215 SB215 SB-215 M2300-215
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 215mm
- Shaft Size:
- 218mm
Technical
Technical
| --- | Clip / Groove Dimensions |
|---|---|
| d1 | 215mm |
| s (ring thickness) | 3mm (Tolerance -0.1) |
| b (ring width) | 5mm (Tolerance -0.1) |
| d3 (un-sprung diameter max) | 220.1mm |
| d2 (groove depth) | 218mm (Tolerance + 0.29) |
| m (groove width min) | 3.2mm |
| --- | Loadings |
| FN (groove load capacity subject to material) | 169 kN |
| FR (load capacity of ring) | 55.5 kN |
