SKU: SB.211

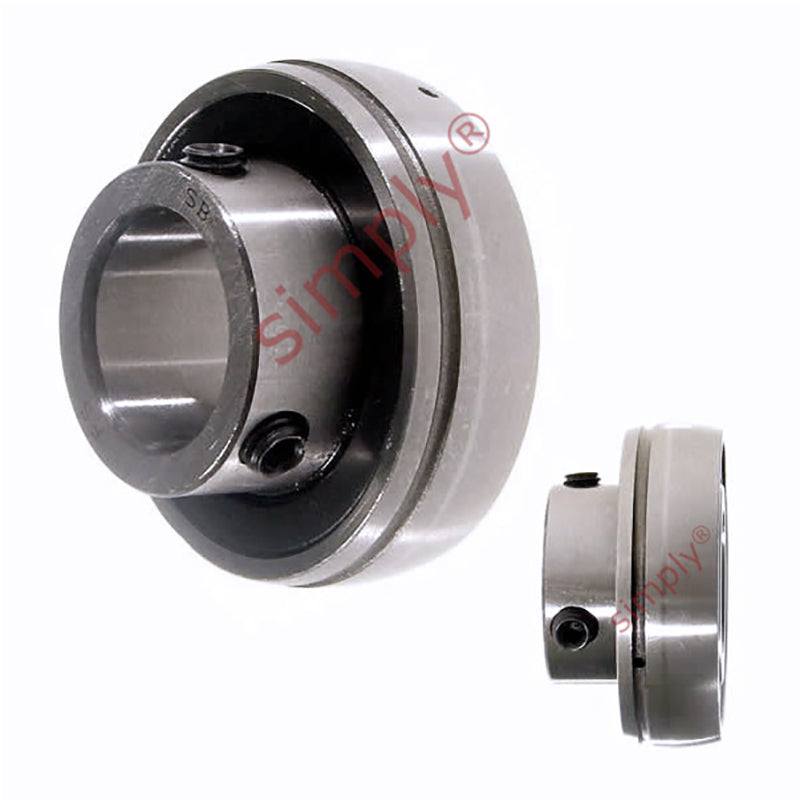

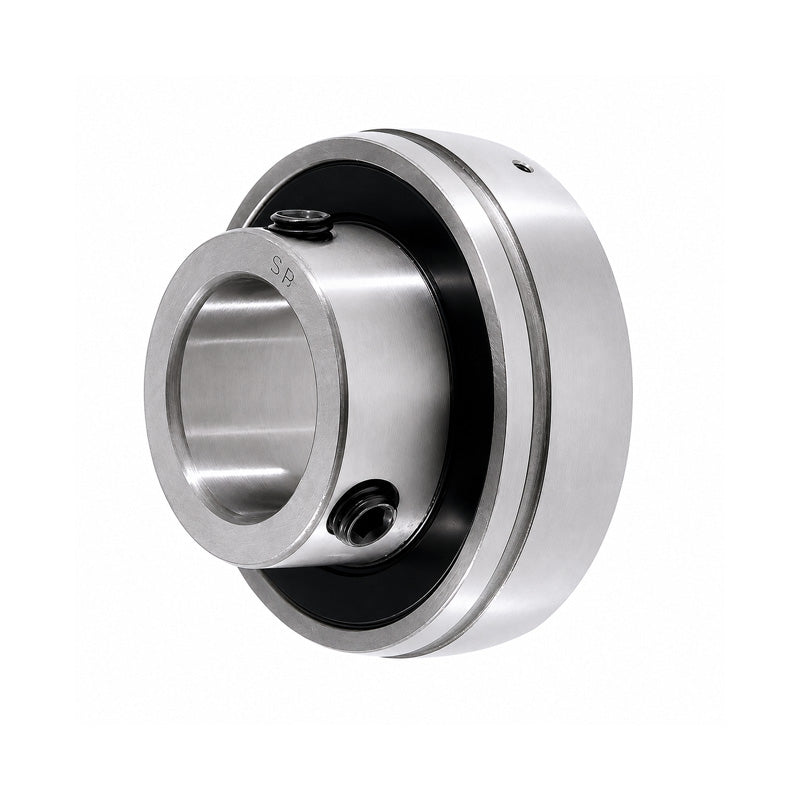

SB211 Metric Bearing Insert with 55mm Bore 100mm Outside Dia
SB211 Metric Bearing Insert with 55mm Bore 100mm Outside Dia
Regular price
€13,13
ex VAT
Regular price
Sale price
€13,13
ex VAT
In stock
Price Break
3+
€10,00
4+
€9,44
9+
€9,33
19+
€9,22
49+
€9,10
99+
€8,99
499+
€8,43
999+
€8,32
1999+
€8,21
2999+
€8,09
4999+
€7,87
Share this product
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Style:
- SB
Technical
Technical
| d | 55mm |
|---|---|
| Be | 23mm |
| D | 100mm |
| Bi | 45.3mm |
| n | 11.8mm |
| m | 33.5mm |
| G | 9.8mm |
| h | 7.2mm |
| Grub screw | M8X1.0 |
| Weight | 1.1 kg |
| Dynamic load | 4400 kgf |
| Static load | 2960 kgf |
