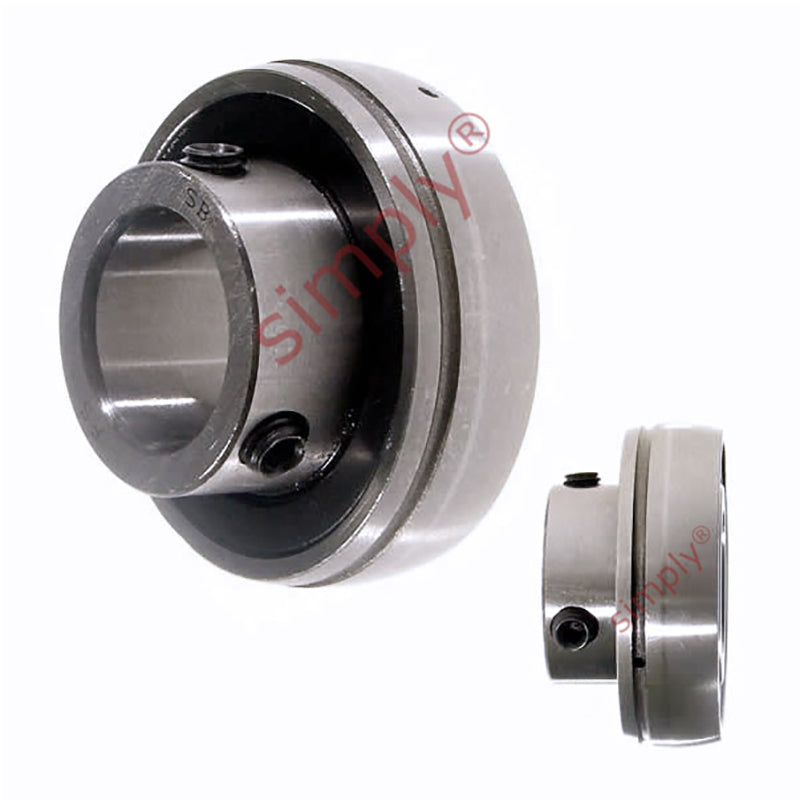

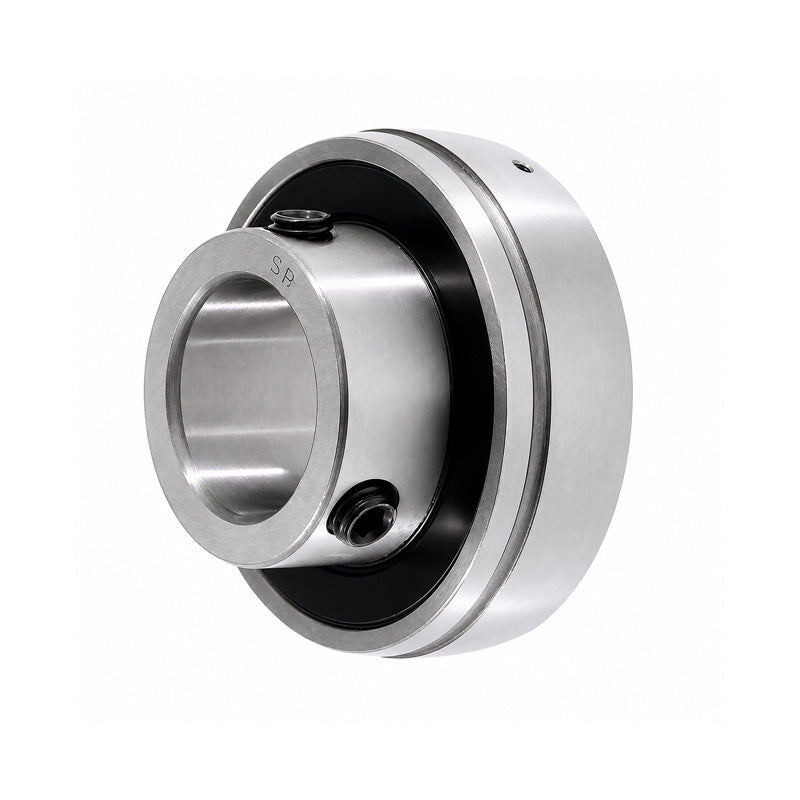

SB210 Metric Bearing Insert with 50mm Bore 90mm Outside Dia
SB210 Metric Bearing Insert with 50mm Bore 90mm Outside Dia
Regular price
€10,29
ex VAT
Regular price
Sale price
€10,29
ex VAT
In stock
Price Break
10+
€9,16
19+
€8,64
29+
€8,54
39+
€8,44
49+
€8,33
74+
€8,23
99+
€7,72
199+
€7,61
249+
€7,51
499+
€7,41
999+
€7,20
Couldn't load pickup availability
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Style:
- SB
Technical
Technical
| d | 50mm |
|---|---|
| Be | 20mm |
| D | 90mm |
| Bi | 41.6mm |
| n | 10mm |
| m | 31.6mm |
| G | 9.2mm |
| h | 6.5mm |
| Grub screw | M8X1.0 |
| Weight | 0.83 kg |
| Dynamic load | 3580 kgf |
| Static load | 2300 kgf |
| Rec max speed | 3400 rpm |
