SKU: SB.208-24

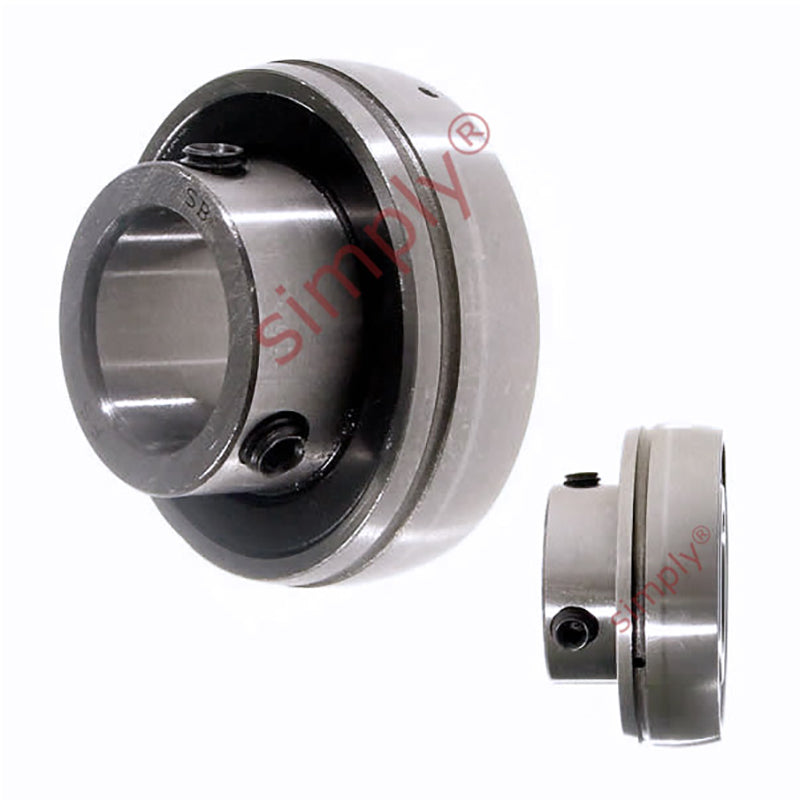

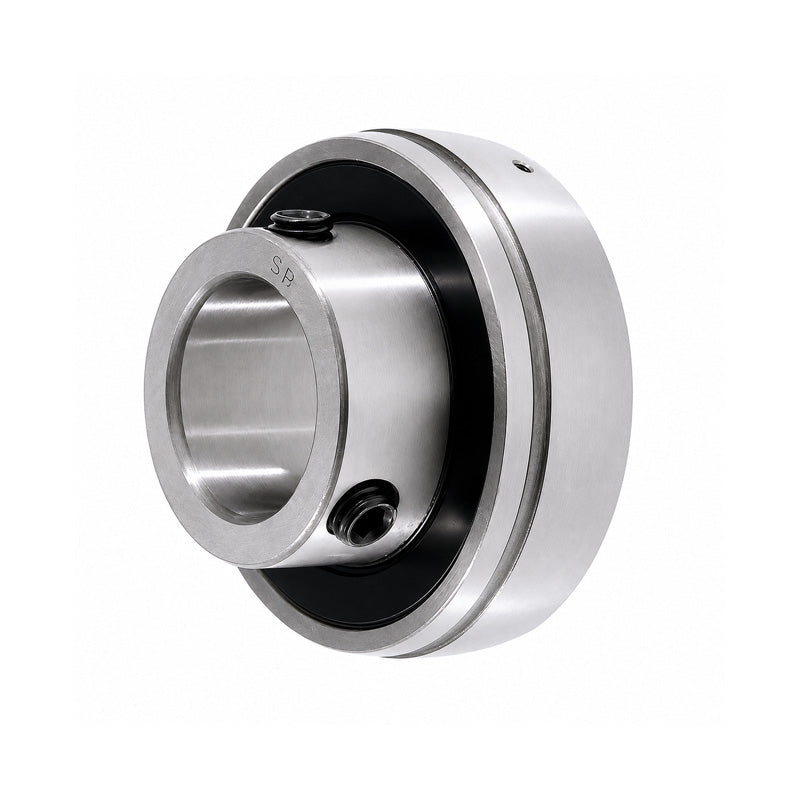

SB208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
SB208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
Regular price
€10,12
ex VAT
Regular price
Sale price
€10,12
ex VAT
In stock
Price Break
3+
€7,71
4+
€7,27
9+
€7,19
19+
€7,10
49+
€7,01
99+
€6,93
499+
€6,50
999+
€6,41
1999+
€6,32
2999+
€6,24
4999+
€6,06
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Style:
- SB
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| Be | 18mm |
| D | 80mm |
| Bi | 34mm |
| n | 9mm |
| m | 25mm |
| G | 7mm |
| h | 6mm |
| Grub screw | 5/16-24 UNF |
| Weight | 0.6 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 4000 rpm |
