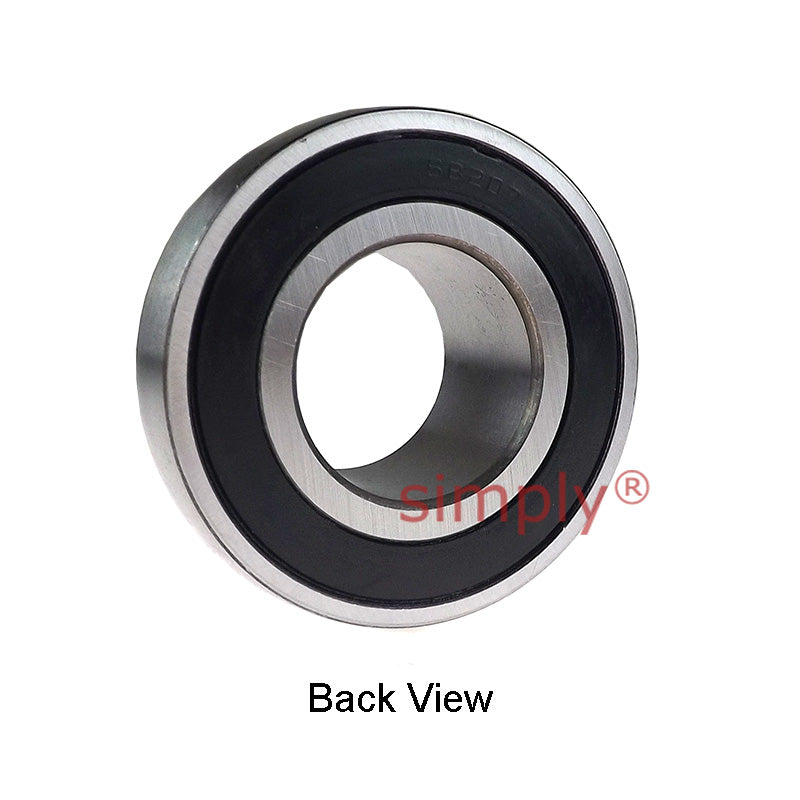

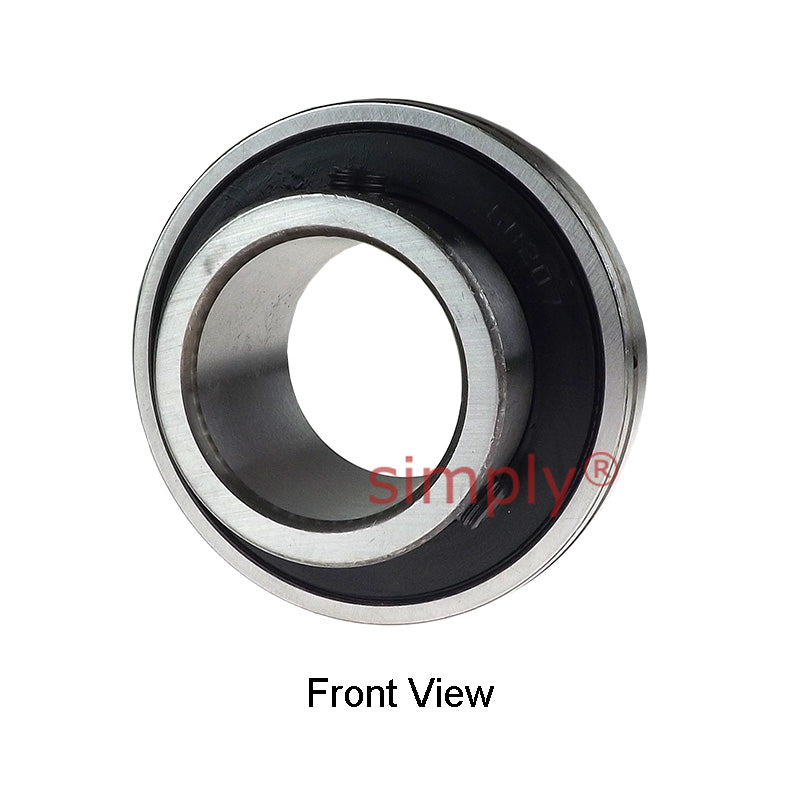

SB207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
SB207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
Regular price
€10,96
ex VAT
Regular price
Sale price
€10,96
ex VAT
In stock
Price Break
10+
€9,75
19+
€9,21
29+
€9,10
39+
€8,99
49+
€8,88
74+
€8,77
99+
€8,22
199+
€8,11
249+
€8,00
499+
€7,89
999+
€7,67
Couldn't load pickup availability
Share this product
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- SB
- Type:
- Spherical Outer
Technical
Technical
| d | 35mm |
|---|---|
| Be | 17mm |
| D | 72mm |
| Bi | 32mm |
| n | 8.5mm |
| m | 23.5mm |
| G | 6.5mm |
| h | 5.5mm |
| Grub screw | M8X1.0 |
| Weight | 0.42 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
