SKU: SB.202-10

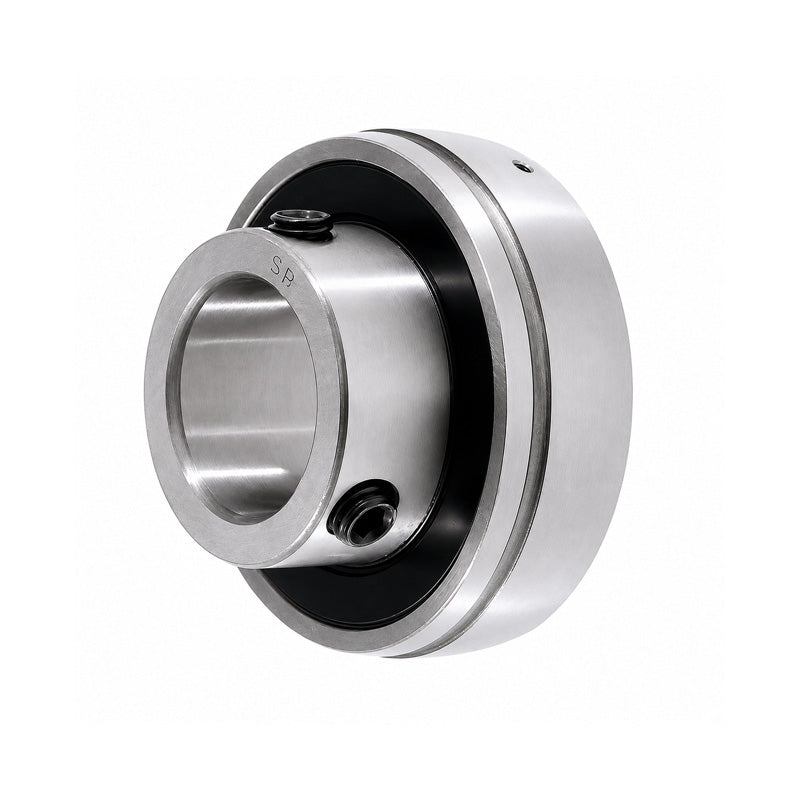

SB202-10 Imperial Bearing Insert with 5/8 inch Bore 40mm Outside Dia
SB202-10 Imperial Bearing Insert with 5/8 inch Bore 40mm Outside Dia
Regular price
€7,83
ex VAT
Regular price
Sale price
€7,83
ex VAT
In stock
Price Break
10+
€6,97
19+
€6,58
29+
€6,50
39+
€6,42
49+
€6,34
74+
€6,26
99+
€5,87
199+
€5,79
249+
€5,72
499+
€5,64
999+
€5,48
Couldn't load pickup availability
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 40mm
- Style:
- SB
Technical
Technical
| d | 5/8 inch |
|---|---|
| Be | 12mm |
| D | 40mm |
| Bi | 22mm |
| n | 6mm |
| m | 16mm |
| G | 4.5mm |
| h | 3.6mm |
| Grub screw | 10-32 UNF |
| Weight | 0.1 kg |
| Dynamic load | 760 kgf |
| Static load | 450 kgf |
