SKU: SALKAC8M-CDX

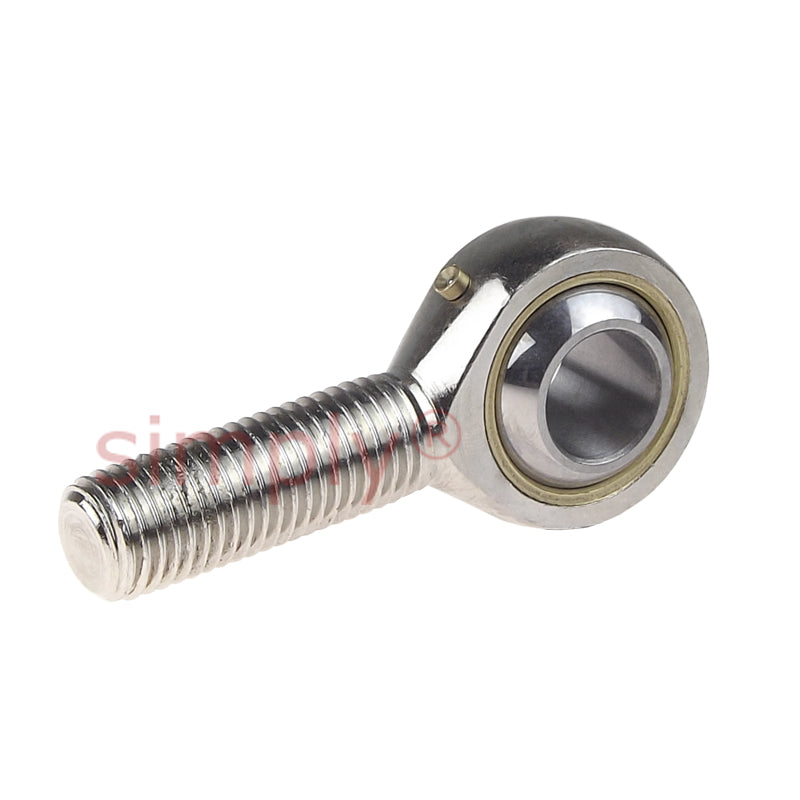

Codex SALKAC8M Left Hand Steel / Bronze Lined Plain Male Rod End M8 Thread
Codex SALKAC8M Left Hand Steel / Bronze Lined Plain Male Rod End M8 Thread
Regular price
€12,57
ex VAT
Regular price
Sale price
€12,57
ex VAT
Equivalent to: POS8L MBL-M08
In stock
Price Break
10+
€9,58
19+
€9,04
29+
€8,93
39+
€8,82
49+
€8,72
74+
€8,61
99+
€8,07
199+
€7,96
249+
€7,86
499+
€7,75
999+
€7,53
Description
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: POS8L MBL-M08
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M8
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 8mm
- Material:
- Bronze Lined
Technical
Technical
| d | 8mm |
|---|---|
| d2 max | 25mm |
| G | M8 |
| B | 12mm |
| C1 max | 9mm |
| h1 | 42mm |
| Max misalignment angle | 14 degrees |
| Dynamic load | 7.2 kN |
| Static load | 8 kN |
| dk | 15.8mm |
| l1 min | 25mm |
| l2 max | 56mm |
| r1 min | 0.3mm |
| Weight | 0.032 kg |
