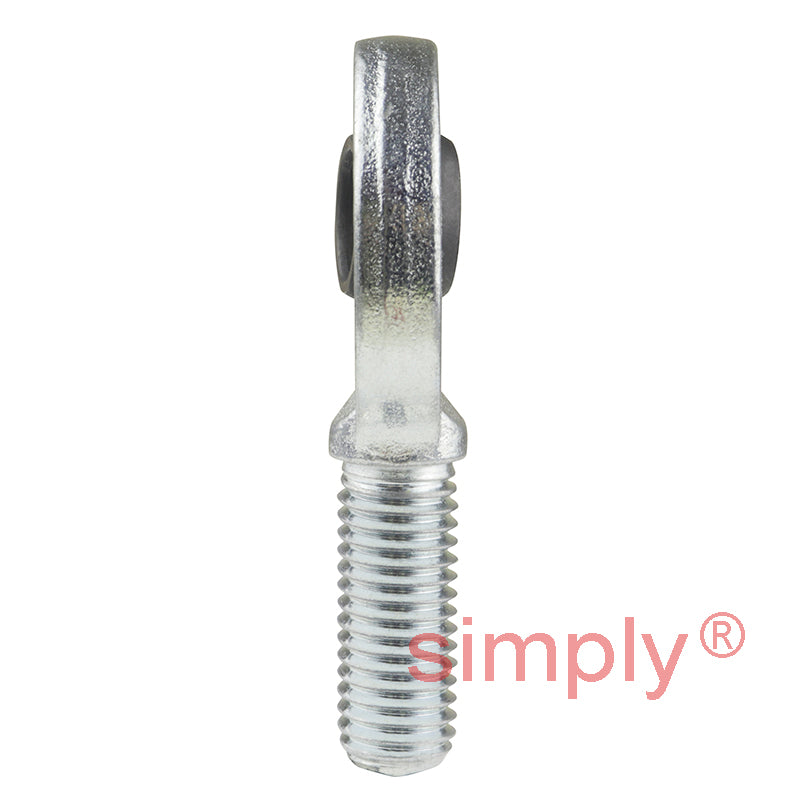

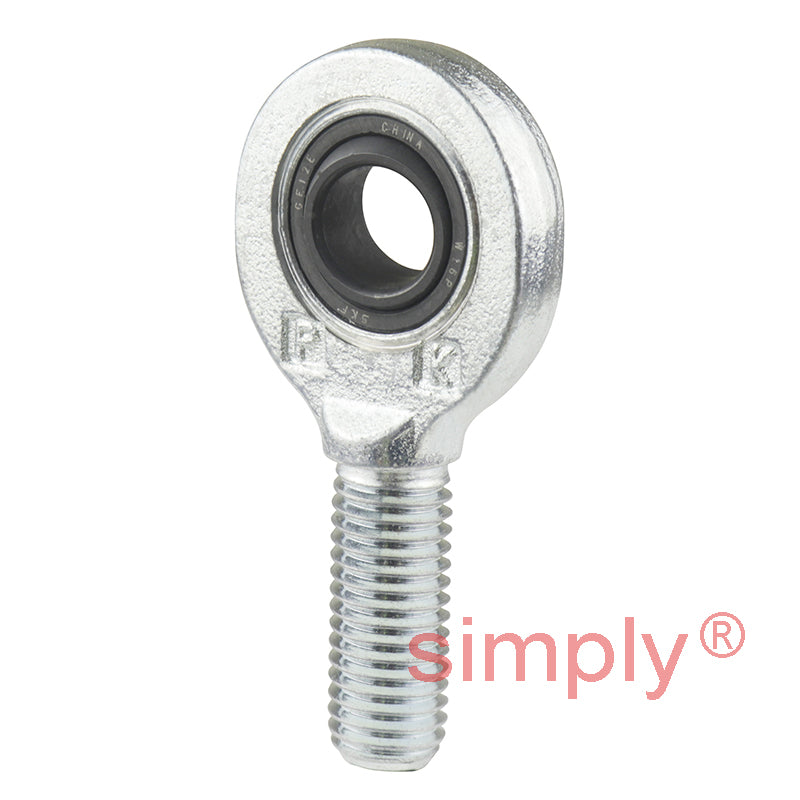

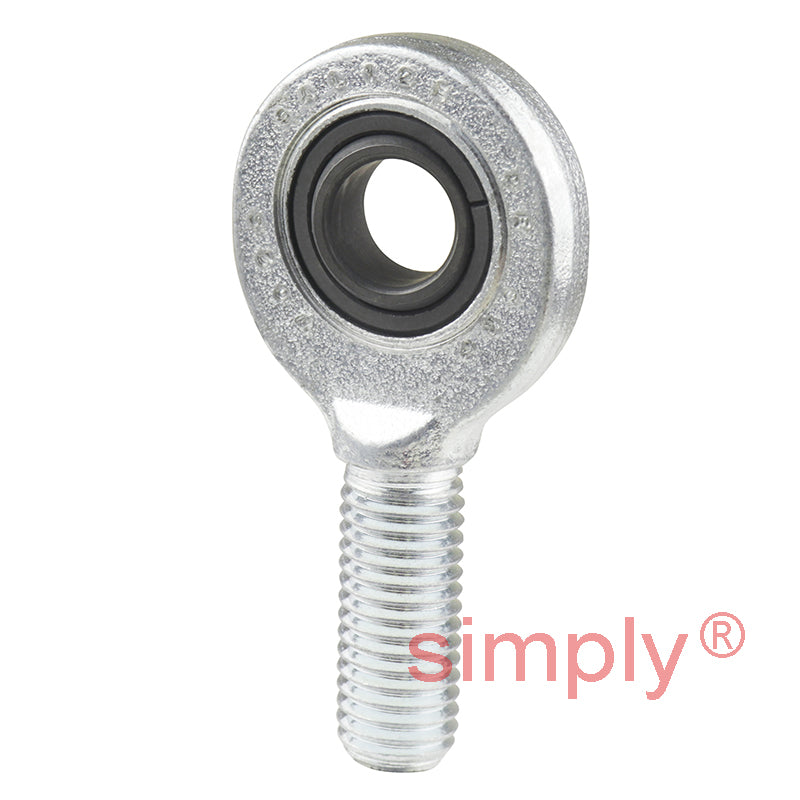

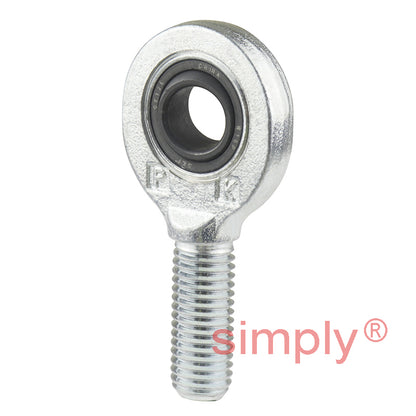

SKF SAL12E Left Hand Steel / Steel Plain Male Rod End M12 Thread
SKF SAL12E Left Hand Steel / Steel Plain Male Rod End M12 Thread
Regular price
€34,49
ex VAT
Regular price
Sale price
€34,49
ex VAT
Equivalent to: GAL12DO GAL12E
In stock
Price Break
10+
€26,27
19+
€24,79
29+
€24,50
39+
€24,20
49+
€23,91
74+
€23,61
99+
€22,14
199+
€21,84
249+
€21,55
499+
€21,25
999+
€20,66
Description
Description
|
SKF SA..E Series Rod End Bearings: This series is classed as rod end bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these rod end bearings are unsealed and require maintenance from time to time, there is no dedicated lubrication point provided thus lubrication in the form of re-lubrication from the sides of the ball is required. These are metric sized male rod end bearings. They are made of heat treatable C45V steel and zinc coated and chromatized and will operate within -50 deg C to +200 deg C. Available in Right or Left hand threads, the Left hand threaded version has a letter L in the part number to denote the difference. Application: Suitable for heavy static or alternating loads, shock loads. Benefits: Re-lubricate-able, cleanable. |
Equivalent: GAL12DO GAL12E
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M12
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 12mm
Technical
Technical
| d | 12mm |
|---|---|
| d2 max | 35mm |
| G | M12 |
| B | 10mm |
| C1 max | 8.5mm |
| h | 54mm |
| a | 10deg |
| Dynamic load C | 10.8 kN |
| Static load Co | 24.5 kN |
| Weight | 0.078 kg |
| dk | 18mm |
| l1 min | 28mm |
| l2 max | 73mm |
| l7 min | 17mm |
| r1 min | 0.3mm |
