SKU: SAKB10F-SKF

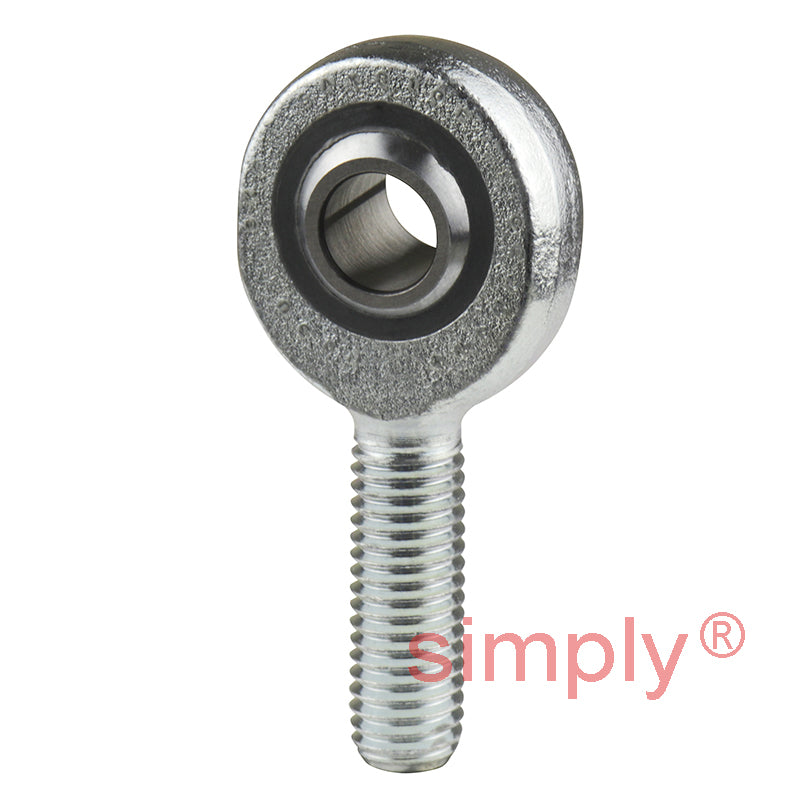

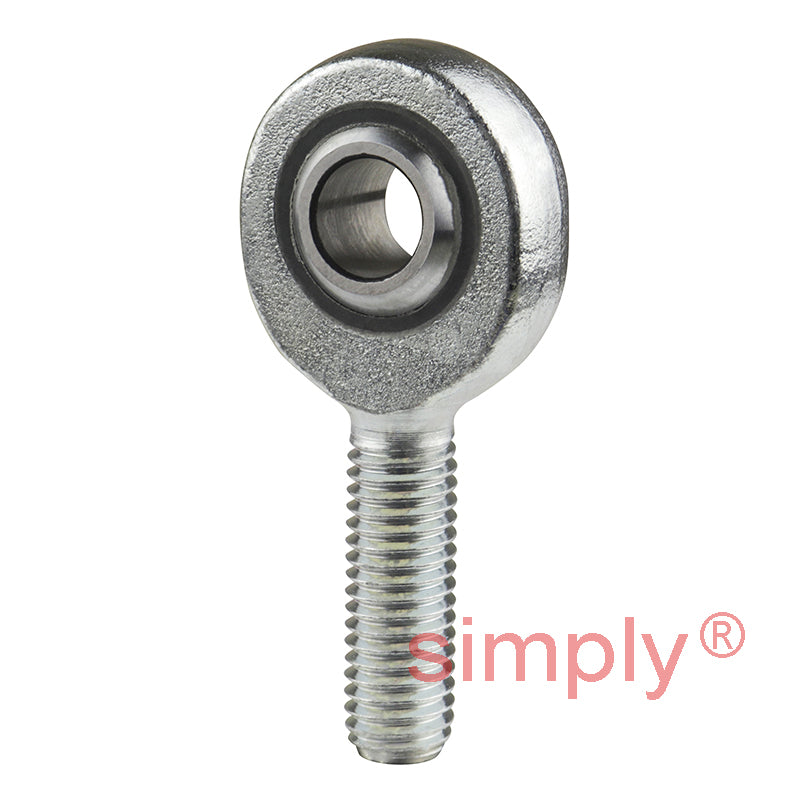

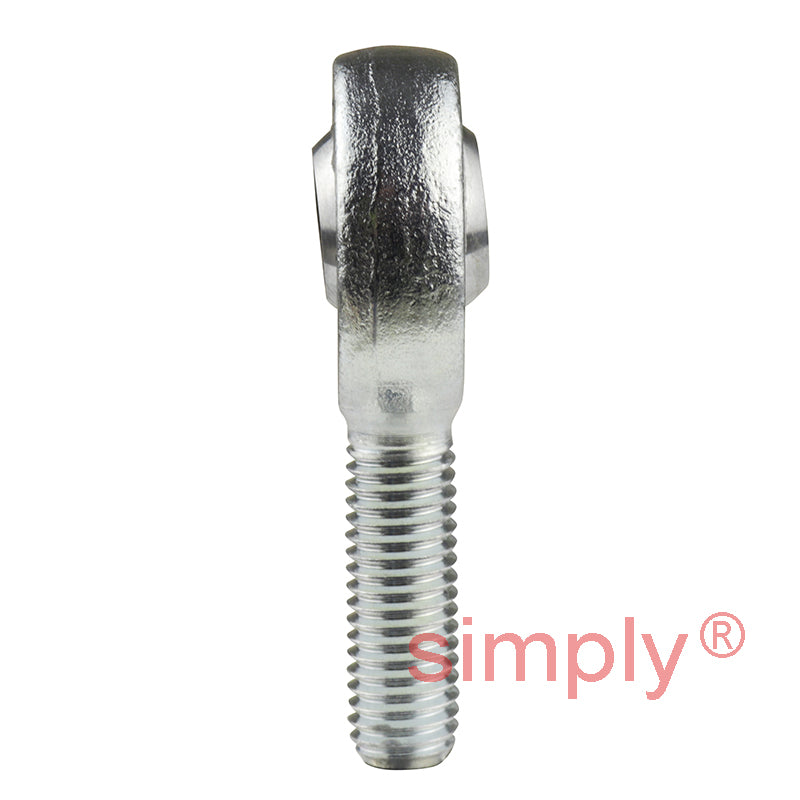

SKF SAKB10F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M10 Thread
SKF SAKB10F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M10 Thread
Regular price
€30,27
ex VAT
Regular price
Sale price
€30,27
ex VAT
Equivalent to: MS-M10
In stock
Price Break
10+
€23,05
19+
€21,76
29+
€21,50
39+
€21,24
49+
€20,98
74+
€20,72
99+
€19,42
199+
€19,17
249+
€18,91
499+
€18,65
999+
€18,13
Description
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Equivalent: MS-M10
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M10
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 10mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 10mm |
|---|---|
| d2 max | 29mm |
| G | M10 |
| B | 14mm |
| C1 max | 10.5mm |
| h | 48mm |
| a | 13deg |
| Dynamic load C | 9.8 kN |
| Static load Co | 12.5 kN |
| Weight | 0.059 kg |
| dk | 19mm |
| l1 min | 28mm |
| l2 max | 64mm |
| r1 min | 0.3mm |
