SKU: S-UCT206D1-NTN

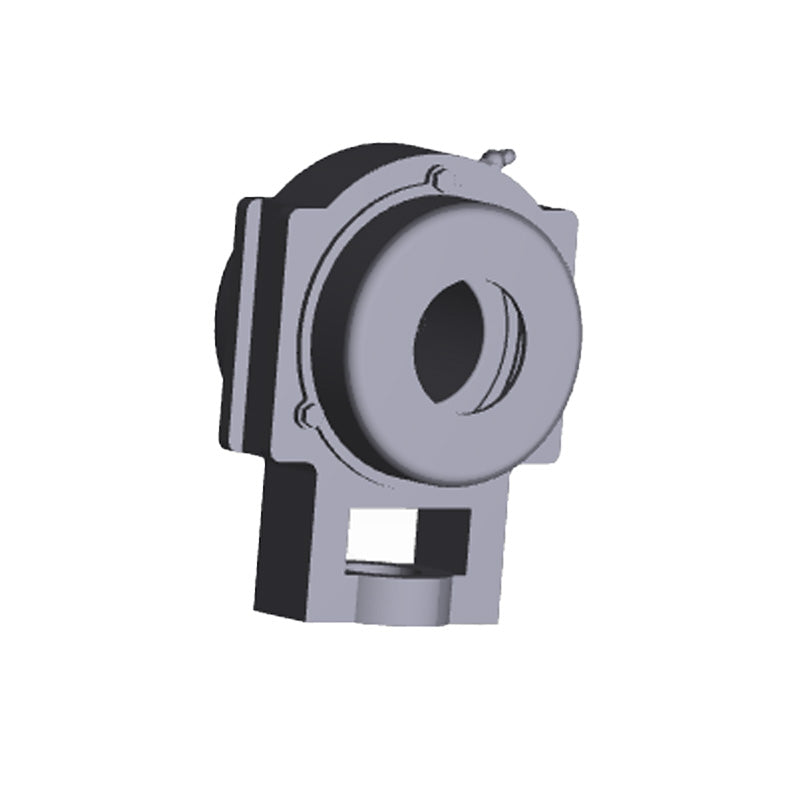

NTN S-UCT206D1 Metric Cast Iron Take Up Unit with 30mm Bore Bearing Unit with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCT206D1 Metric Cast Iron Take Up Unit with 30mm Bore Bearing Unit with Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
€51,77
ex VAT
Regular price
Sale price
€51,77
ex VAT
In stock
Price Break
3+
€43,86
4+
€42,09
9+
€41,20
19+
€39,87
49+
€38,98
99+
€36,77
499+
€31,01
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| N<sub>1</sub> | 16mm |
| L<sub>2</sub> | 12mm |
| H<sub>2</sub> | 56mm |
| N<sub>2</sub> | 37mm |
| N | 22mm |
| L<sub>3</sub> | 57mm |
| A<sub>1</sub> | 12mm |
| H<sub>1</sub> | 89mm |
| H | 102mm |
| L | 113mm |
| A<sub>2</sub> | 28mm |
| A | 37mm |
| r | 43mm |
| L<sub>1</sub> | 70mm |
| B | 38.1mm |
| S | 15.9mm |
| A<sub>4</sub> | 62mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 21.6 kN |
| Static load C<sub>0r</sub> | 11.3 kN |
| Fatigue load limit C<sub>u</sub> | 0.795 kN |
| --- | Unit information |
| Mass | 1.3 kg |
