SKU: S-UCFL204D1-NTN

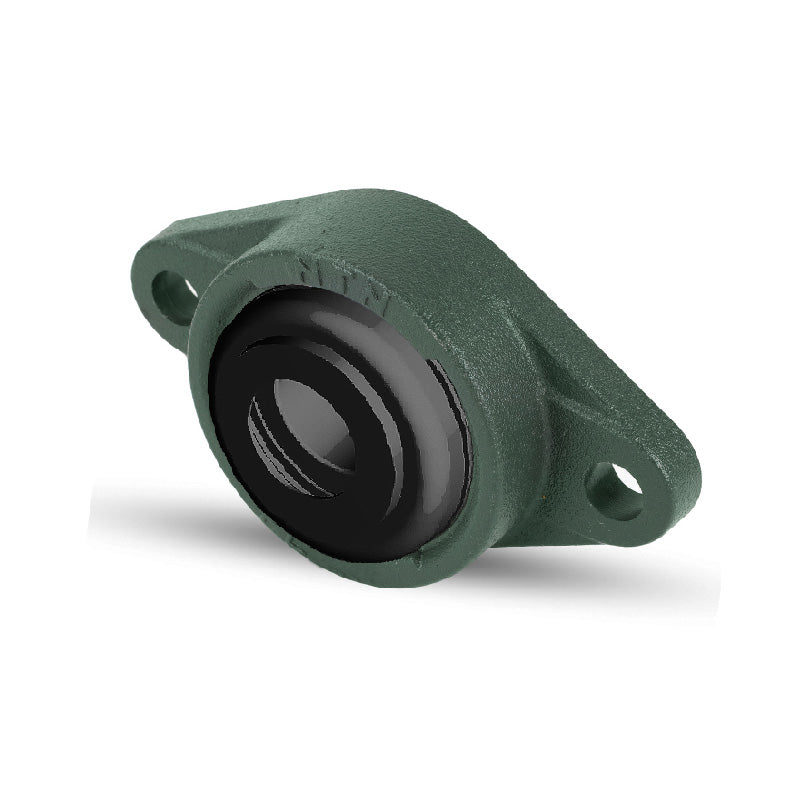

NTN S-UCFL204D1 Metric Two Bolt Oval Cast Iron Flange Housing with 20mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCFL204D1 Metric Two Bolt Oval Cast Iron Flange Housing with 20mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
€36,21
ex VAT
Regular price
Sale price
€36,21
ex VAT
In stock
Price Break
3+
€30,68
4+
€29,44
9+
€28,82
19+
€27,89
49+
€27,27
99+
€25,72
499+
€21,69
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Style:
- UCFL
- Bolt Hole Centres:
- 90mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 20mm |
| H | 113mm |
| J | 90mm |
| A<sub>2</sub> | 15mm |
| A<sub>1</sub> | 11mm |
| A | 25.5mm |
| N | 12mm |
| L | 60mm |
| B | 31mm |
| S | 12.7mm |
| A<sub>4</sub> | 40.5mm |
| Fixing bolt | M10 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 14.2 kN |
| Static load C<sub>0r</sub> | 6.65 kN |
| Fatigue load limit C<sub>u</sub> | 0.505 kN |
| --- | Unit information |
| Mass | 0.4 kg |
