SKU: RPNA20/35-EU

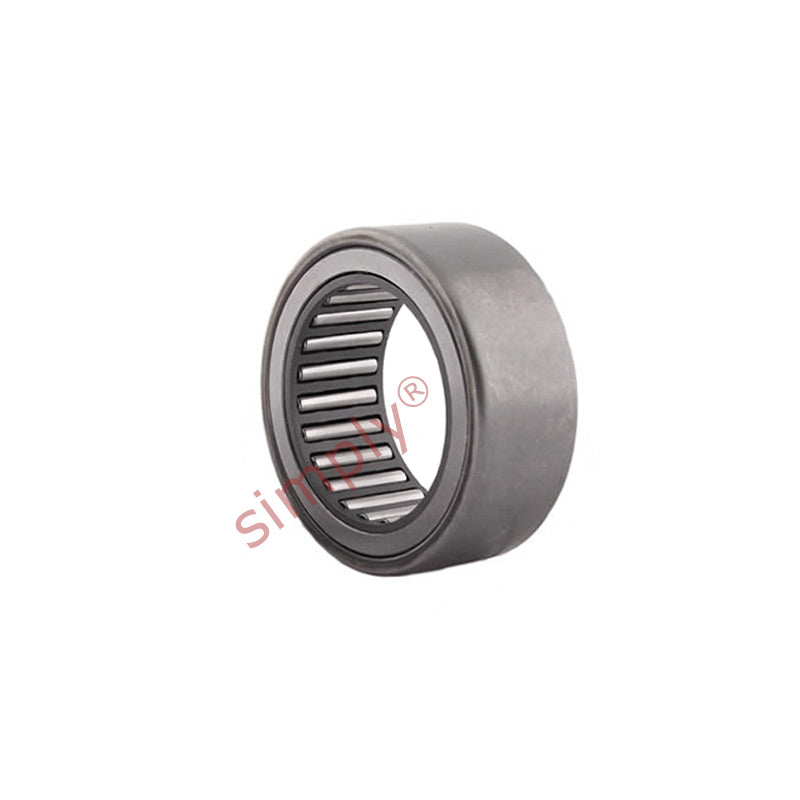

RPNA20/35 Budget Needle Roller Bearing Alignment Type no Inner Race 20x35x16
RPNA20/35 Budget Needle Roller Bearing Alignment Type no Inner Race 20x35x16
Regular price
€17,83
ex VAT
Regular price
Sale price
€17,83
ex VAT
In stock
Price Break
10+
€13,58
19+
€12,82
29+
€12,67
39+
€12,51
49+
€12,36
74+
€12,21
99+
€11,45
199+
€11,29
249+
€11,14
499+
€10,99
999+
€10,68
Description
Description
|
Budget Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 35mm |
| B | 16mm |
| Dynamic load C | 13200 N |
| Static load Co | 19300 N |
| Fatigue load limit Pu | 2280 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| D1 | 30.5mm |
| r min | 1mm |
| Da min | 29.5mm |
| Da max | 30.5mm |
| ra max | 1mm |
| Weight | 62 g |
