SKU: RNU308ECP-SKF

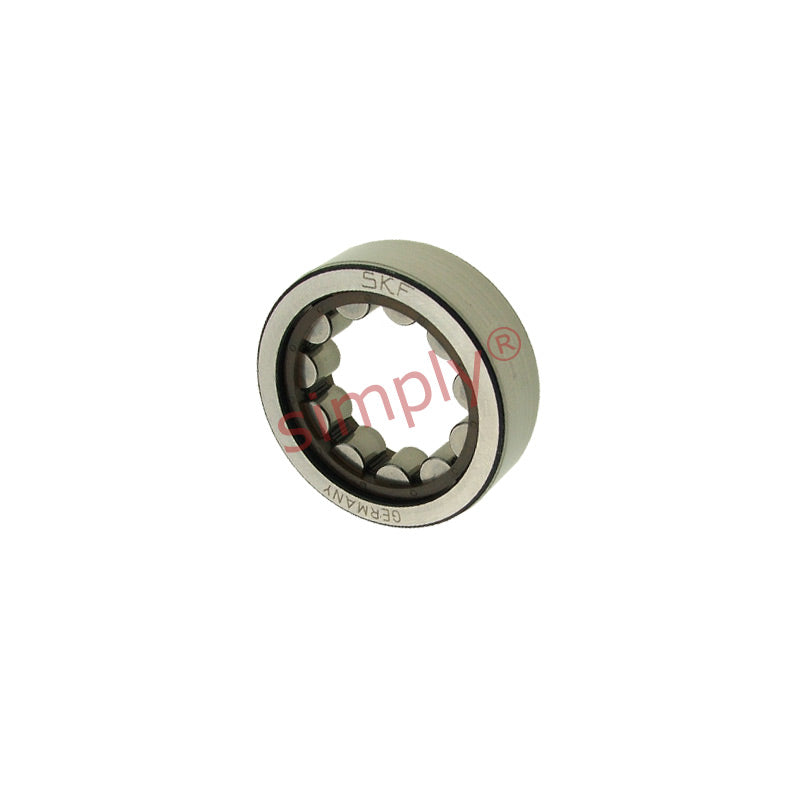

SKF RNU308ECP Single Row Cylindrical Roller Bearing 52x90x23mm
SKF RNU308ECP Single Row Cylindrical Roller Bearing 52x90x23mm
Regular price
€75,62
ex VAT
Regular price
Sale price
€75,62
ex VAT
In stock
Price Break
10+
€57,59
19+
€54,36
29+
€53,71
39+
€53,06
49+
€52,42
74+
€51,77
99+
€48,53
199+
€47,89
249+
€47,24
499+
€46,59
999+
€45,30
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 52mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
Technical
Technical
| d | 52mm |
|---|---|
| D | 90mm |
| C | 23mm |
| C1 | 4mm |
| Dynamic load | 93 kN |
| Static load | 78 kN |
| Fatigue load limit Pu | 10.2 kN |
| Reference speed | 8000rpm |
| Limiting speed | 9500rpm |
| r1,2min | 1.5mm |
| Weight | 0.57kg |
