SKU: RNA6919R-NTN

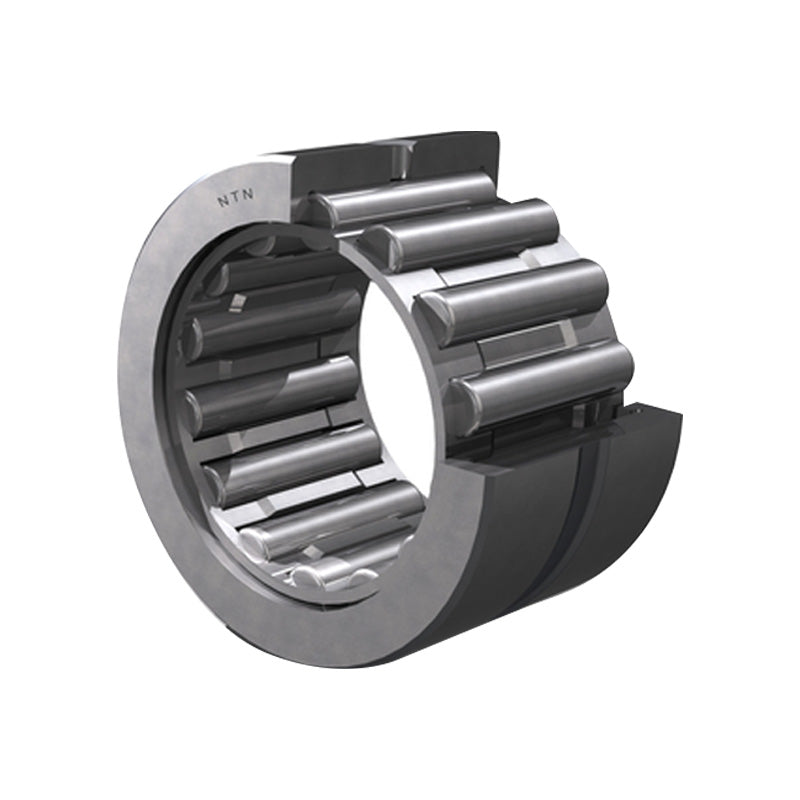

NTN RNA6919R Machined Needle Roller Bearing no Shaft Sleeve 110x130x63mm - Allow 2-3 Days

NTN RNA6919R Machined Needle Roller Bearing no Shaft Sleeve 110x130x63mm - Allow 2-3 Days
Regular price €207,31 ex VAT
Regular price Sale price €207,31 ex VAT
Sale Sold out

In stock

Price Break
3+ €175,63
4+ €168,53
9+ €164,98
19+ €159,66
49+ €156,11
99+ €147,24
499+ €124,18
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 110mm
D - Outside diameter 130mm
C - Width of bearing, drawn cup or outer ring 63mm
rs - Minimum fillet radius 1.1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 177 kN
C0r - Static load rating 440 kN
N - Grease lubrication limit speed 2400 tr/min
N - Oil lubrication limit speed 3600 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 123.5mm
ras max - Maximum shaft & housing fillet radius 1mm
