SKU: RNA6911R-NTN

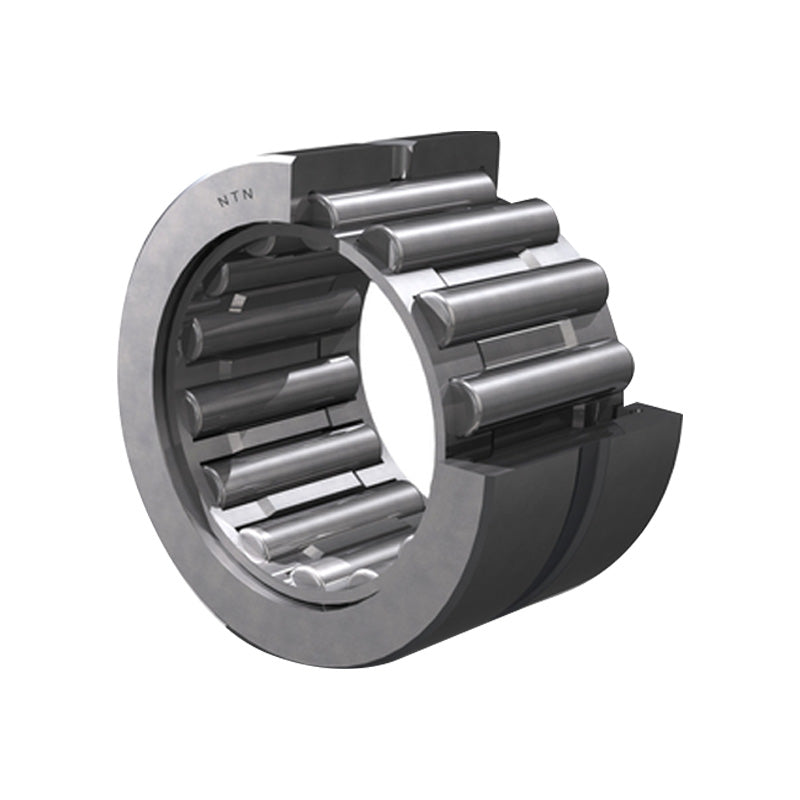

NTN RNA6911R Machined Needle Roller Bearing no Shaft Sleeve 63x80x45mm - Allow 2-3 Days

NTN RNA6911R Machined Needle Roller Bearing no Shaft Sleeve 63x80x45mm - Allow 2-3 Days
Regular price €77,63 ex VAT
Regular price Sale price €77,63 ex VAT
Sale Sold out

In stock

Price Break
3+ €65,77
4+ €63,11
9+ €61,78
19+ €59,79
49+ €58,46
99+ €55,14
499+ €46,50
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 63mm
D - Outside diameter 80mm
C - Width of bearing, drawn cup or outer ring 45mm
rs - Minimum fillet radius 1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 94 kN
C0r - Static load rating 183 kN
N - Grease lubrication limit speed 4300 tr/min
N - Oil lubrication limit speed 6500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 75mm
ras max - Maximum shaft & housing fillet radius 1mm
