SKU: RNA6903-MB

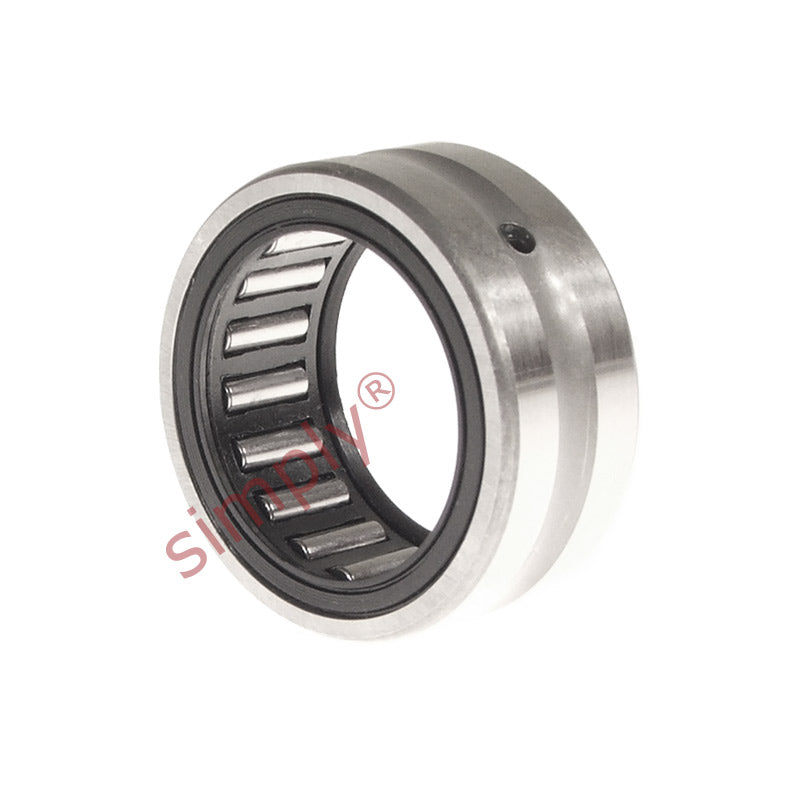

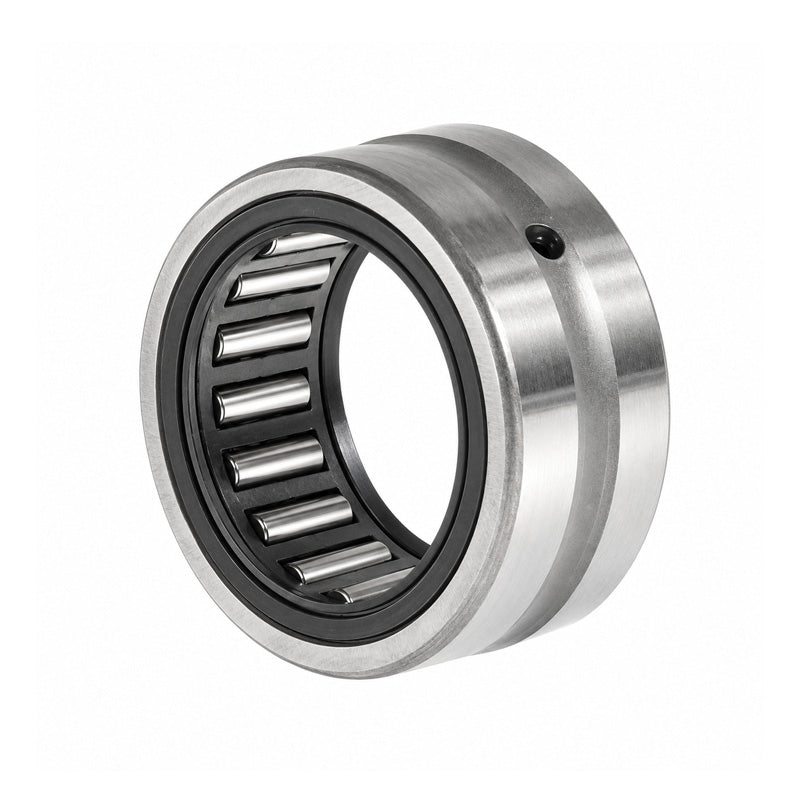

Major Brand RNA6903 Needle Roller Bearing With Flanges without Shaft Sleeve 22x30x23mm
Major Brand RNA6903 Needle Roller Bearing With Flanges without Shaft Sleeve 22x30x23mm
Regular price
€29,54
ex VAT
Regular price
Sale price
€29,54
ex VAT
In stock
Price Break
10+
€22,50
19+
€21,23
29+
€20,98
39+
€20,73
49+
€20,47
74+
€20,22
99+
€18,96
199+
€18,70
249+
€18,45
499+
€18,20
999+
€17,69
Share this product
Description
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 30mm
- Width:
- 23mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 30mm |
| C | 23mm |
| Dynamic load | 18700 N |
| Static load | 30500 N |
| Fatigue load limit Pu | 3900 N |
| Speed in grease | 12000 rpm |
| Speed in oil | 18000 rpm |
| r1r2 | 0.3mm |
| Da max | 28mm |
| ra max | 0.3mm |
| Seal | G/SD22x30x4 |
| Weight | 42 g |
