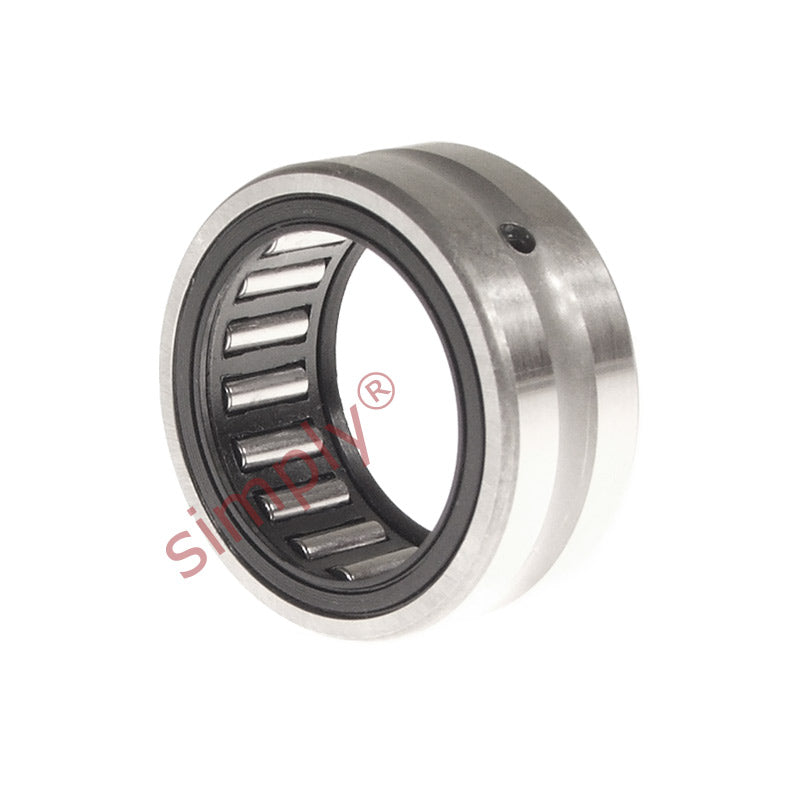

RNA6903 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 22x30x23mm
RNA6903 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 22x30x23mm
Regular price
€17,06
ex VAT
Regular price
Sale price
€17,06
ex VAT
In stock
Price Break
10+
€15,18
19+
€14,33
29+
€14,16
39+
€13,99
49+
€13,82
74+
€13,65
99+
€12,80
199+
€12,62
249+
€12,45
499+
€12,28
999+
€11,94
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 30mm
- Width:
- 23mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 30mm |
| C | 23mm |
| Dynamic load C | 18700 N |
| Static load Co | 30500 N |
| Fatigue load limit Pu | 3900 N |
| Speed in grease | 12000 rpm |
| Speed in oil | 18000 rpm |
| r1r2 | 0.3mm |
| Da max | 28mm |
| ra max | 0.3mm |
| Seal | G/SD22x30x4 |
| Weight | 42 g |
