SKU: RNA22/8.2RS-EU

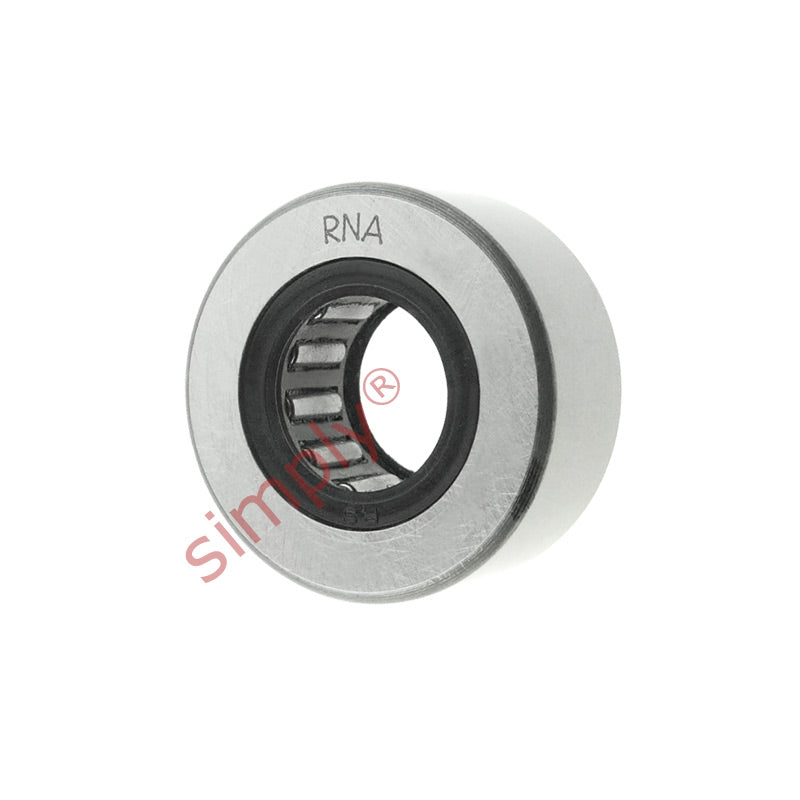

RNA22/82RS Budget Support Roller with 2 Rubber Seals 12x24x11.8mm

Name: RNA22/82RS Budget Support Roller with 2 Rubber Seals 12x24x11.8mm
Brand: Gen
SKU: RNA22/8.2RS-EU
Price: 9.86 EUR
Availability: InStock

€9,86 ex VAT

Sale Sold out

Equivalent to: RNA22/8LL

In stock

Price Break

10+ €7,51

19+ €7,09

29+ €7,01

39+ €6,92

49+ €6,84

74+ €6,75

99+ €6,33

199+ €6,25

249+ €6,16

499+ €6,08

999+ €5,91

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Support Rollers without Axial Guidance: Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers without inner rings are intended for arrangements where the pin or shaft can be hardened and ground.
Benefits: Supplied without the inner ring, separable - easily mounted

Equivalent: RNA22/8LL

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 12mm
Outside Diameter:: 24mm
Width:: 11.8mm
Seals / Shields:: Rubber Seals

Technical

D	24mm
C	11.8mm
Fw	12mm
D1	18mm
r min	0.3mm
Speed rating	7000 rpm
Dynamic load	4460 N
Static load	4400 N
Fatigue load limit Pu	500 N
Min radial force dynamic load	5000 N
Max radial force dynamic load	7100 N
Weight	29 g
