SKU: RNA0-16X28X12-NTN

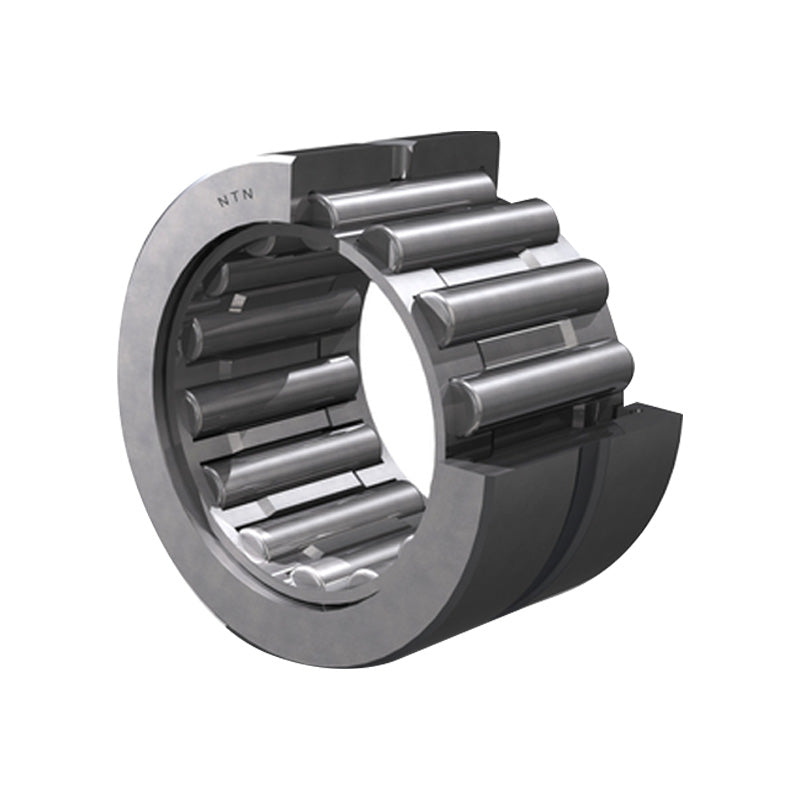

NTN RNA0-16X28X12 Seperable Machined Needle Roller Bearing no Shaft Sleeve 16x28x12mm - Allow 2-3 Days

NTN RNA0-16X28X12 Seperable Machined Needle Roller Bearing no Shaft Sleeve 16x28x12mm - Allow 2-3 Days
Regular price €15,51 ex VAT
Regular price Sale price €15,51 ex VAT
Sale Sold out

In stock

Price Break
3+ €13,14
4+ €12,61
9+ €12,34
19+ €11,94
49+ €11,68
99+ €11,01
499+ €9,29
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 16mm
D - Outside diameter 28mm
C - Width of bearing, drawn cup or outer ring 12mm
E - Upper roller diameter 22mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 11.7 kN
C0r - Static load rating 12.5 kN
N - Grease lubrication limit speed 15000 tr/min
N - Oil lubrication limit speed 23000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
db - Inner ring shoulder diameter 21.6mm
Da max - Outer ring maximum shoulder diameter 26mm
Db max - Outer ring maximum smooth shaft shoulder diameter 16.4mm
ras max - Maximum shaft & housing fillet radius 0.3mm
