SKU: RM35FF-MB

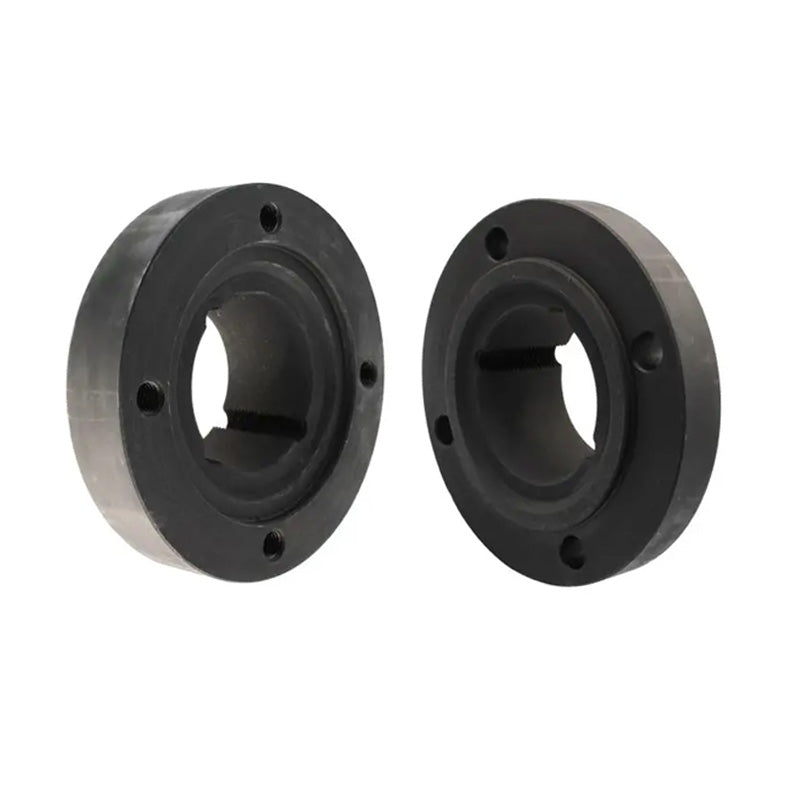

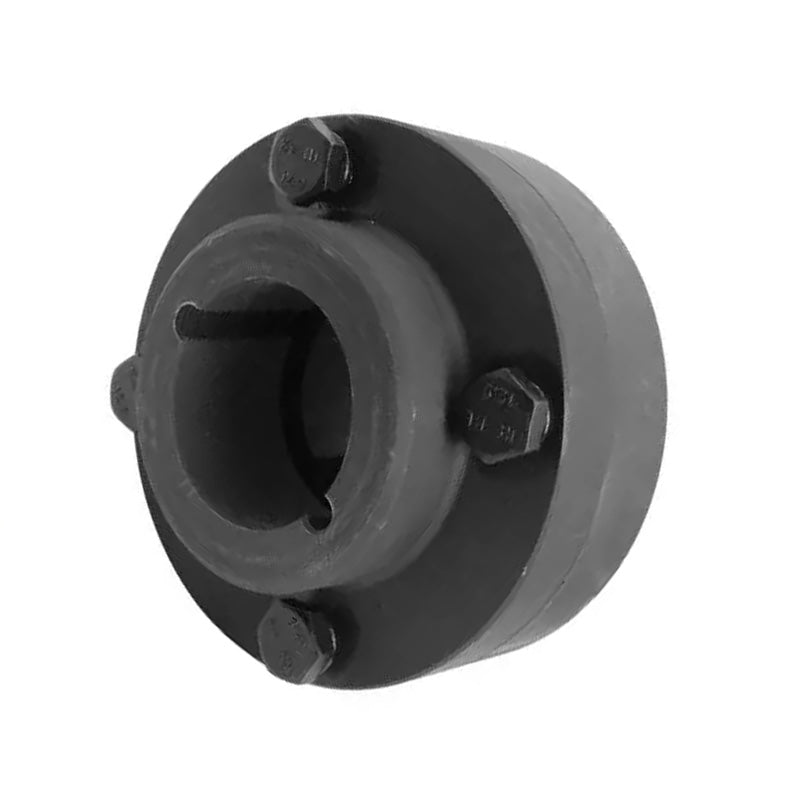

Major Brand RM35FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 100mm / 4 inch
Major Brand RM35FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 100mm / 4 inch
Regular price
€431,33
ex VAT
Regular price
Sale price
€431,33
ex VAT
Equivalent to: RM35FF-3525
In stock
Price Break
10+
€383,88
19+
€362,32
29+
€358,00
39+
€353,69
49+
€349,38
74+
€345,06
99+
€323,50
199+
€319,18
249+
€314,87
499+
€310,56
999+
€301,93
Couldn't load pickup availability
Description
Description
Major Branded Rigid Shaft Coupling with Inner Taper Bores: Taper Bore Rigid Couplings provide a convenient method of rigidly connecting ends of shafts. Supplied as a complete coupling assembly except for the tapered locking bush (link below). The large diameter of the tape bore is on the flange side (FF).
Equivalent: RM35FF-3525
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 100mm or 4 inch
Technical
Technical
| Bush | 3525<a href="advanced_search_result.php?keywords=taper+lock+bush+3525"> [Click Here]</a> |
|---|---|
| Max Bore Size | 100mm |
| Inch | 4 inch |
| A | 248mm |
| C | 75mm |
| D | 178mm |
| E | 65mm |
| F Nominal | 178mm |
| G Nominal | 213mm |
| H ♣ | 7mm |
| J ♠ | 67mm |
| L | 137mm |
| Mass ♥ | 34kg |
