SKU: RCJTY25-TV-VA-INA

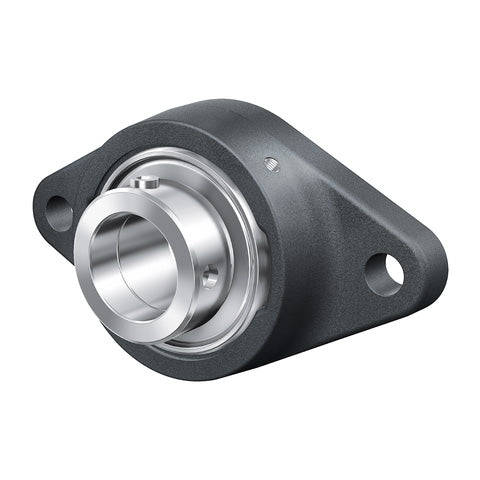

INA RCJTY25-TV-VA Two Bolt Plastic Oval Housing with Grub Screw Insert Corrosion-Resistant Design 25mm Bore
INA RCJTY25-TV-VA Two Bolt Plastic Oval Housing with Grub Screw Insert Corrosion-Resistant Design 25mm Bore
Regular price
€191,52
ex VAT
Regular price
Sale price
€191,52
ex VAT
In stock
Price Break
4+
€145,86
9+
€137,67
19+
€136,03
29+
€134,39
39+
€132,75
49+
€131,11
59+
€122,92
69+
€121,28
79+
€119,64
89+
€118,00
99+
€114,72
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This oval plastic housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. As the housing is made from plasic and the bearing insert is made from corrosion-resistant steel, this unit is suitable for use where corrosion resistance is required. Benefits: Re-lubricatable, grub screw fixing, tolerates misalignment of the shaft, corrosion-resistant. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Style:
- RCJTY
- Bolt Hole Centres:
- 99mm
Technical
Technical

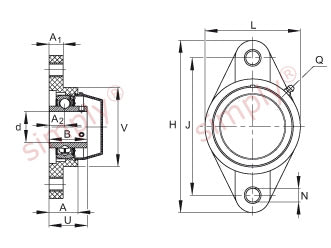

| d | 25mm |
|---|---|
| H | 130mm |
| U | 36.8mm |
| A | 29.1mm |
| A1 | 13.5mm |
| A2 | 17mm |
| B | 34.1mm |
| J | 99mm |
| L | 70mm |
| N | 11mm |
| Q | 1/4 - 28 UNF |
| V | 70mm |
| Mass | 0.33 kg |
| Basic dynamic load rating Cr | 13400 N |
| Basic static load rating Cor | 7500 N |
| Load carrying capacity of housing Cor G | 11100 N |
| Designation of housing | GEH.CJT05-TV |
| Designation of bearing | GYE25-KRR-B-FA107-VA |
| Bearing end cap, closed design (supplied with end cap) | KASK05-S-G |
| Bearing end cap, open design, with integral rotary shaft seal (available by agreement) | KASK05-S-R-NBR |
