SKU: RCJTA40-XL-N-INA

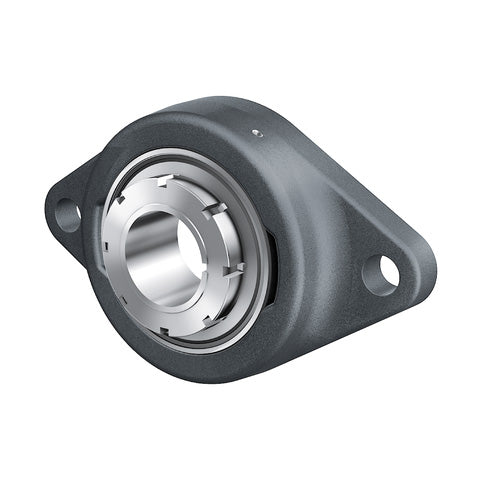

INA RCJTA40XLN Two Bolt Cast Iron Oval Housing with Adaptor Sleeve 40mm Bore
INA RCJTA40XLN Two Bolt Cast Iron Oval Housing with Adaptor Sleeve 40mm Bore
Regular price
€101,42
ex VAT
Regular price
Sale price
€101,42
ex VAT
In stock
Price Break
4+
€77,24
9+
€72,90
19+
€72,04
29+
€71,17
39+
€70,30
49+
€69,43
59+
€65,09
69+
€64,22
79+
€63,36
89+
€62,49
99+
€60,75
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an adaptor sleeve. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, adaptor sleeve, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Style:
- RCJTA
- Bolt Hole Centres:
- 143.5mm
Technical
Technical
| d | 40mm |
|---|---|
| H | 172mm |
| U | 51mm |
| A | 34.5mm |
| A1 | 13mm |
| A2 | 24mm |
| B1 | 38mm |
| d3 max | 58mm |
| J | 143.5mm |
| L | 105mm |
| N | 14mm |
| Q | M6mm |
| V | 105mm |
| Mass | 1.46 kg |
| Basic dynamic load rating Cr | 31000 N |
| Basic static load rating Cor | 19700 N |
| Designation of housing | CJT08 |
| Designation of bearing | GSH40-XL-2RSR-B |
| Bearing end cap, closed design (to be ordered separately) | KASK08 |
