SKU: RAXPZ470-NADELLA

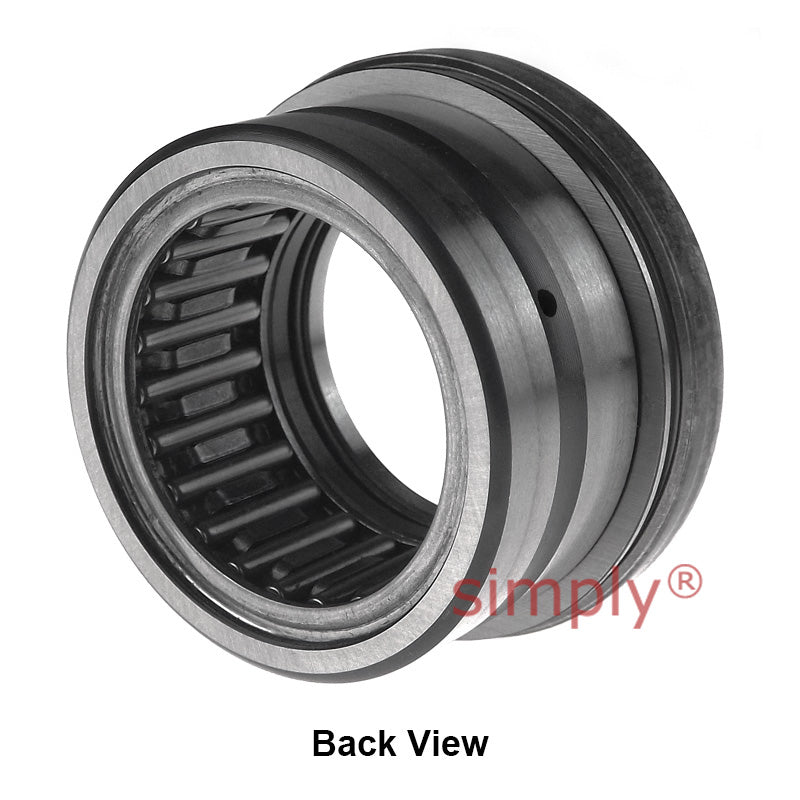

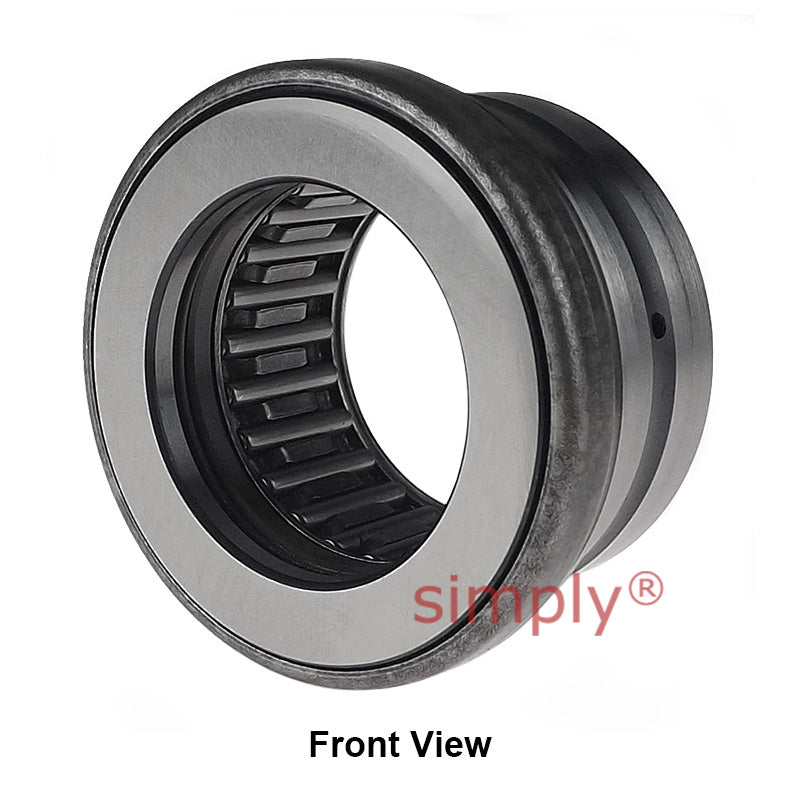

Nadella RAXPZ 470 Combined Bearing with Incorporated Thrust Plate 70x85x32mm Allow 2-3 Days
Nadella RAXPZ 470 Combined Bearing with Incorporated Thrust Plate 70x85x32mm Allow 2-3 Days
Regular price
€1.055,88
ex VAT
Regular price
Sale price
€1.055,88
ex VAT
In stock
Price Break
2+
€1.003,09
5+
€950,29
10+
€897,50
15+
€844,70
20+
€823,59
30+
€802,47
50+
€696,88
Couldn't load pickup availability
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 85mm
- Width:
- 32mm
Technical
Technical
| Fw | 70mm |
|---|---|
| D | 85mm |
| C | 32mm |
| da | 70mm |
| Da | 96mm |
| C1 | 11mm |
| C2 | 11mm |
| rs min | 1.3mm |
| Radial dynamic load | 36.1 kN |
| Radial static load | 84.7 kN |
| Axial dynamic load | 34.5 kN |
| Axial static load | 223 kN |
| Speed rating | 3 rpm |
| Weight | 0.479 kg |
