SKU: RAXPZ412-NADELLA

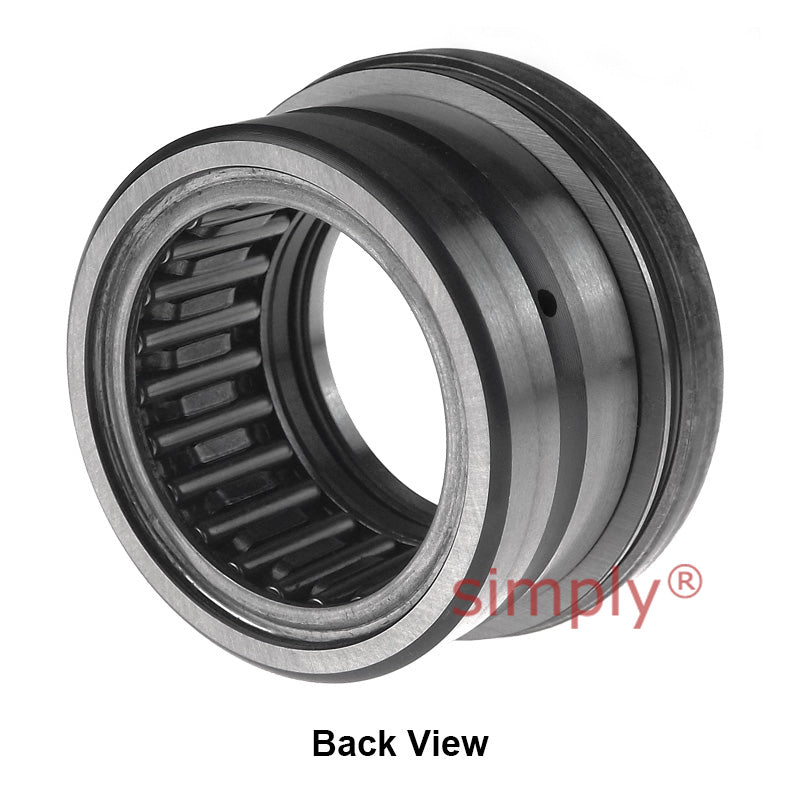

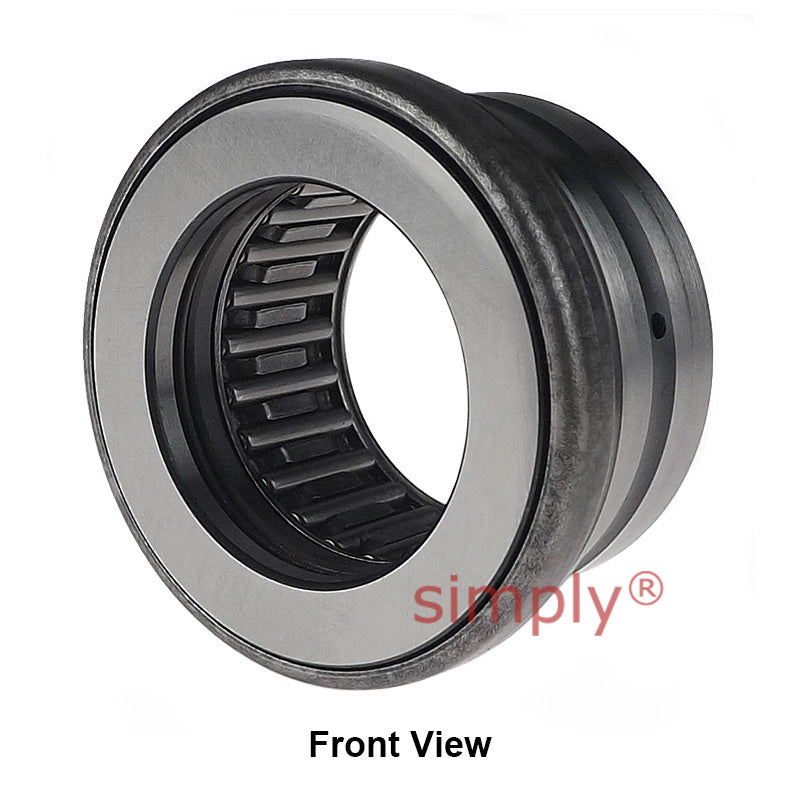

Nadella RAXPZ412 Combined Bearing with Incorporated Thrust Plate 12x21x21mm Allow 2-3 Days
Nadella RAXPZ412 Combined Bearing with Incorporated Thrust Plate 12x21x21mm Allow 2-3 Days
Regular price
€258,30
ex VAT
Regular price
Sale price
€258,30
ex VAT
In stock
Price Break
5+
€255,72
10+
€245,39
20+
€240,22
50+
€232,47
100+
€227,30
500+
€214,39
1000+
€180,81
Couldn't load pickup availability
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 21mm
- Width:
- 21mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 21mm |
| C | 21mm |
| da | 12mm |
| Da | 26.4mm |
| C1 | 7mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 6.8 kN |
| Radial static load | 9 kN |
| Axial dynamic load | 7.1 kN |
| Axial static load | 18.5 kN |
| Speed rating | 13000 rpm |
| Weight | 0.038 kg |
