SKU: RALE30-NPP-FA106-INA

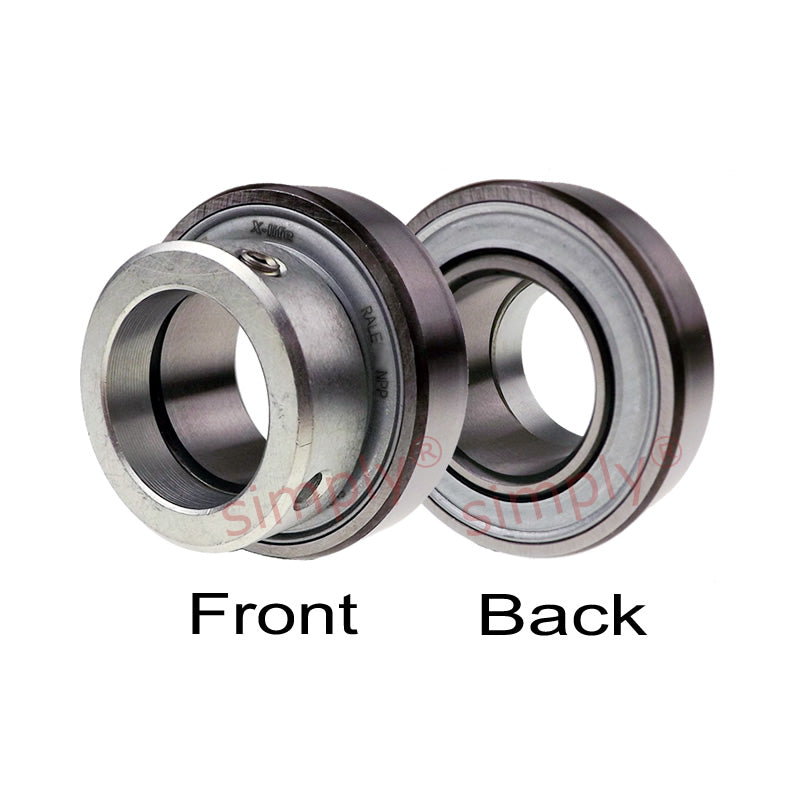

INA RALE30XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals 30x55x26.5mm
INA RALE30XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals 30x55x26.5mm
Regular price
€30,27
ex VAT
Regular price
Sale price
€30,27
ex VAT
In stock
Price Break
3+
€23,05
5+
€21,76
10+
€21,50
15+
€21,24
20+
€20,98
30+
€20,72
40+
€19,43
50+
€19,17
60+
€18,91
75+
€18,65
100+
€18,13
Description
Description
| INA RALE..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. Operating temperature range: -20 deg C to +120 deg C. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 26.5mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 55mm |
| B1 | 26.5mm |
| B | 18.5mm |
| C | 13mm |
| d2 | 35.7mm |
| d3 max | 42.5mm |
| S | 6.5mm |
| W | 2.5mm |
| Dynamic load Cr | 13200 N |
| Static load C0r | 8300 N |
| Weight | 0.18 kg |
