SKU: RAE50-NPP-FA106-INA

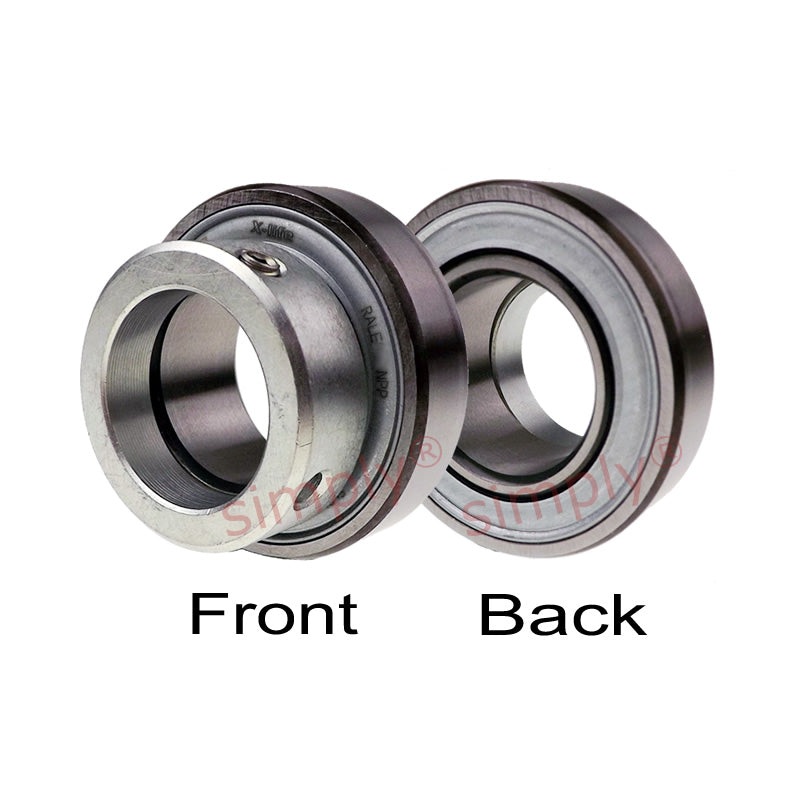

INA RAE50XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 50x90x43.8mm
INA RAE50XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 50x90x43.8mm
Regular price
€66,77
ex VAT
Regular price
Sale price
€66,77
ex VAT
In stock
Price Break
3+
€50,85
5+
€48,00
10+
€47,43
15+
€46,85
20+
€46,28
30+
€45,71
40+
€42,86
50+
€42,28
60+
€41,71
75+
€41,14
100+
€40,00
Description
Description
|
INA RAE..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 43.8mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B1 | 43.8mm |
| B | 30.2mm |
| C | 22mm |
| d2 | 59.4mm |
| d3 max | 69mm |
| S | 11mm |
| W | 5mm |
| Dynamic load Cr | 35000 N |
| Static load C0r | 23200 N |
| Weight | 0.79 kg |
