SKU: RAE30-NPP-NR-INA

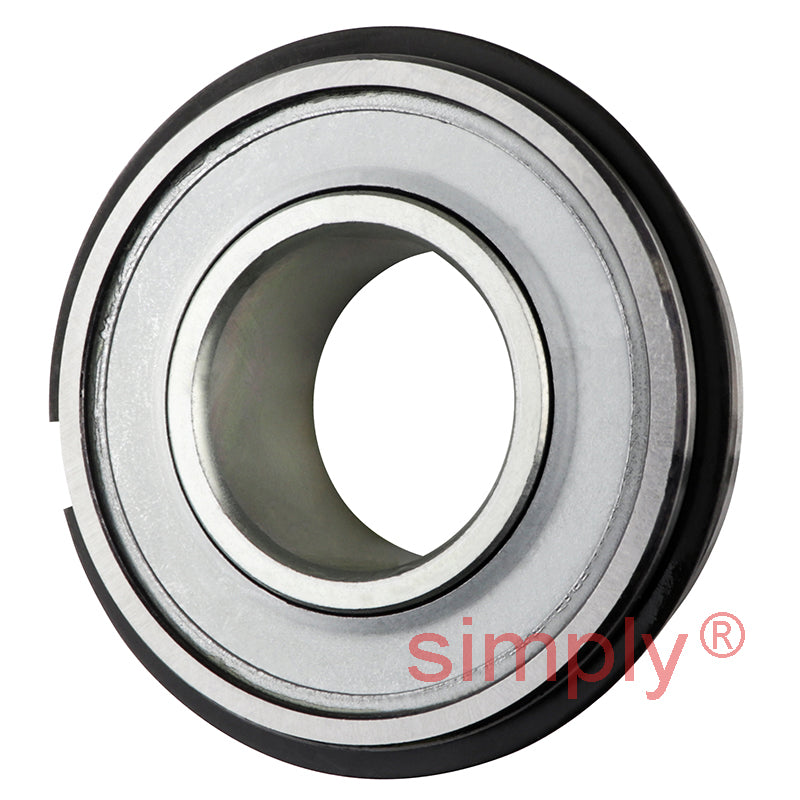

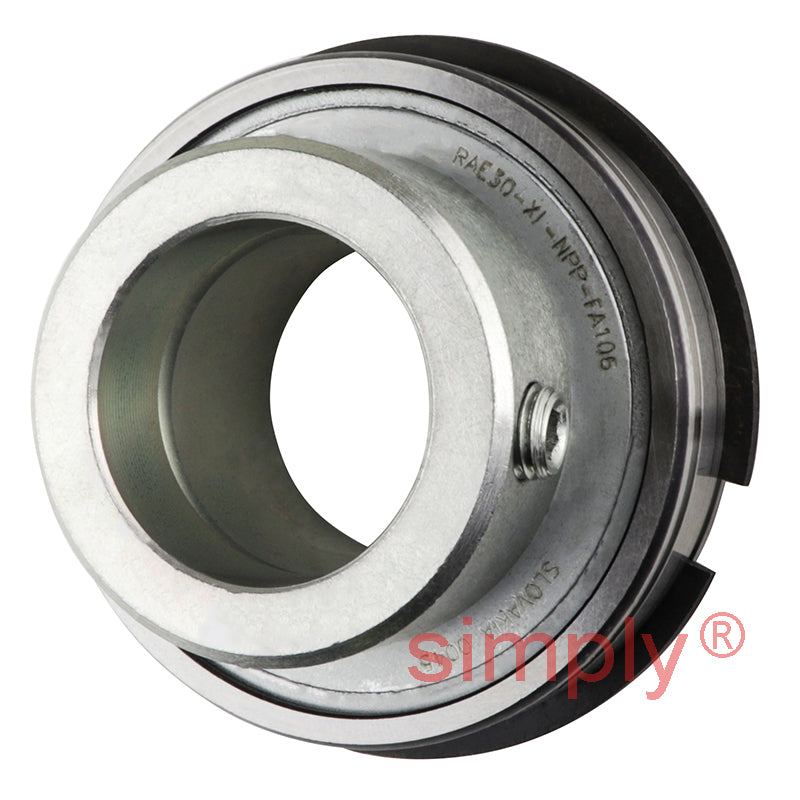

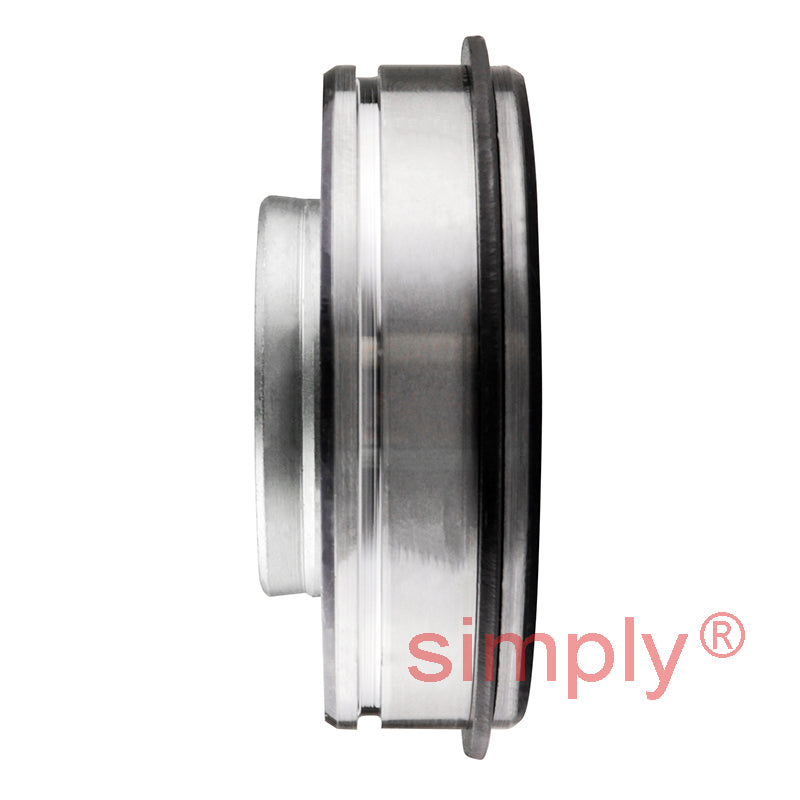

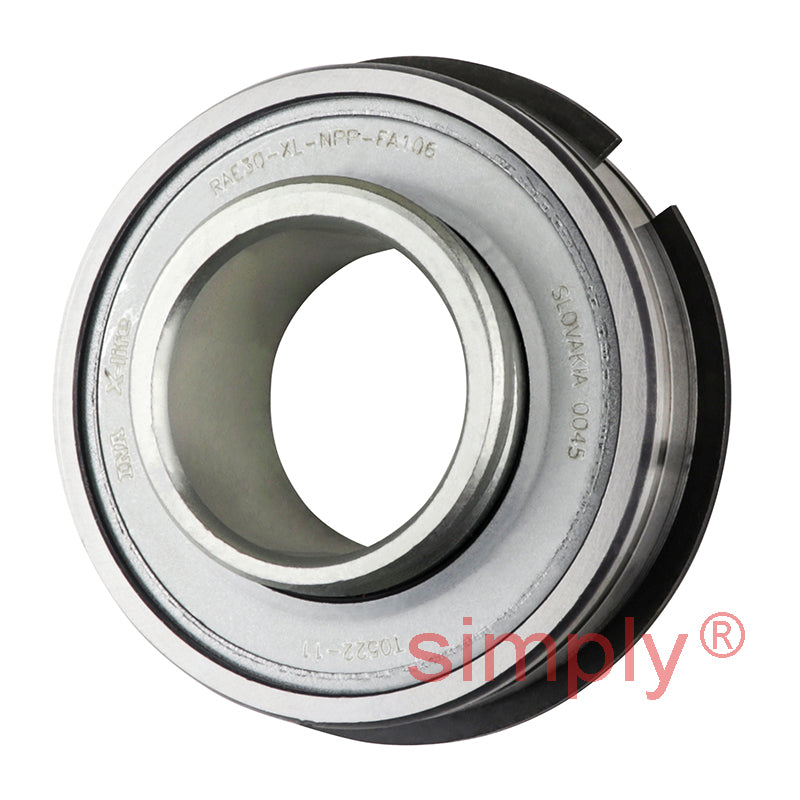

INA RAE30XLNPPNR Metric Parallel Outer Bearing Insert with P Seals and Slots in Outer Ring 30x62x35.8mm
INA RAE30XLNPPNR Metric Parallel Outer Bearing Insert with P Seals and Slots in Outer Ring 30x62x35.8mm
Regular price
€28,19
ex VAT
Regular price
Sale price
€28,19
ex VAT
In stock
Price Break
3+
€21,47
5+
€20,26
10+
€20,02
15+
€19,78
20+
€19,54
30+
€19,30
40+
€18,09
50+
€17,85
60+
€17,61
75+
€17,37
100+
€16,88
Description
Description
|

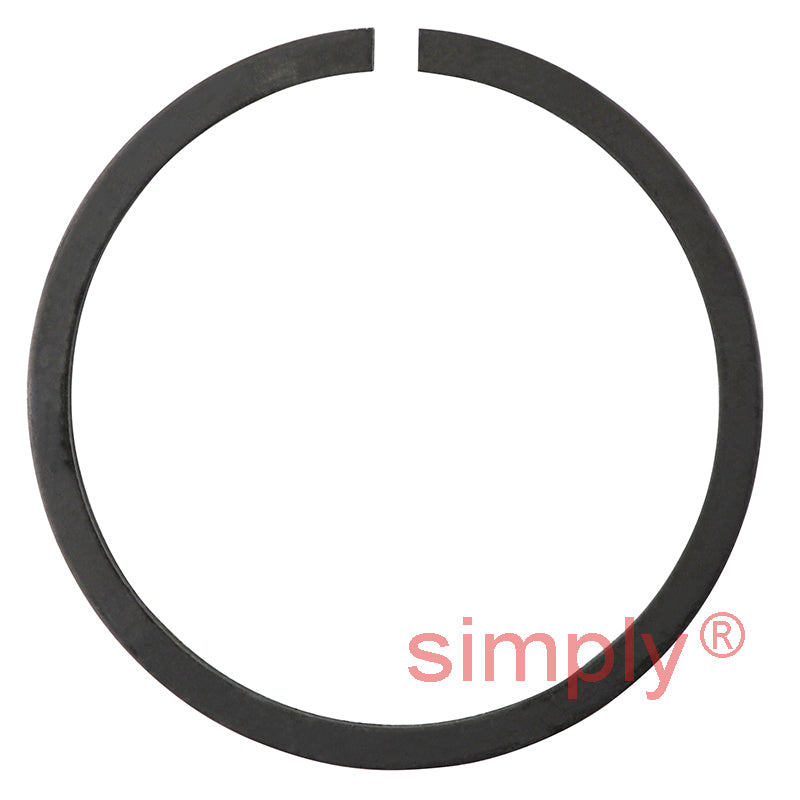

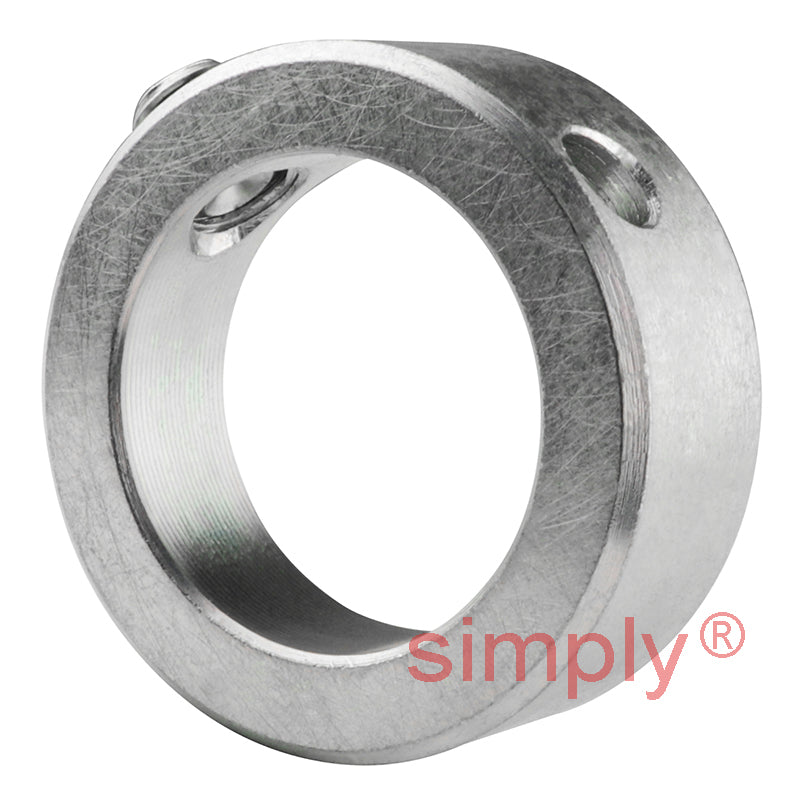

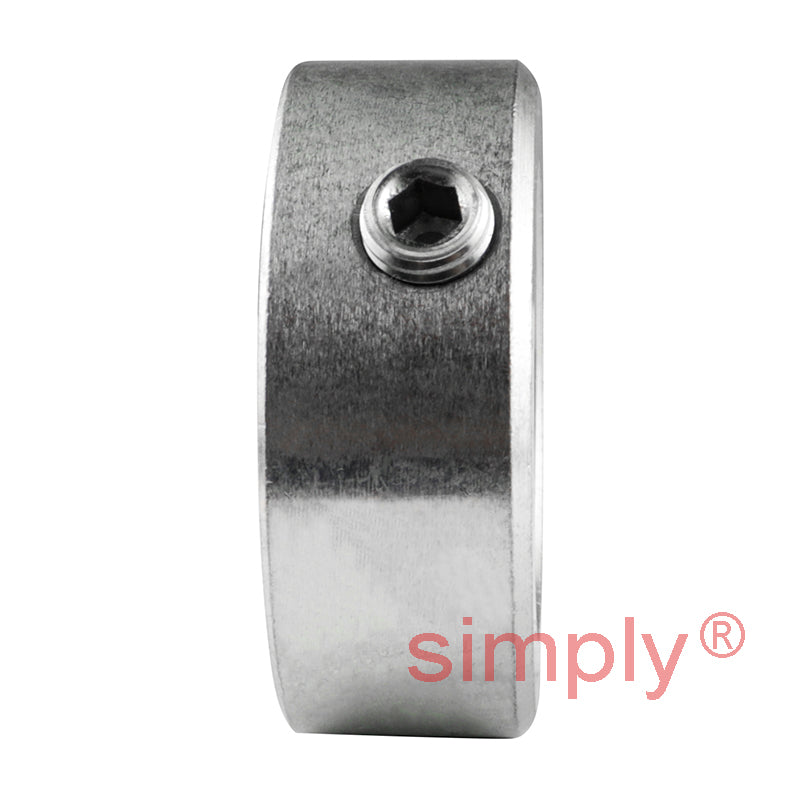

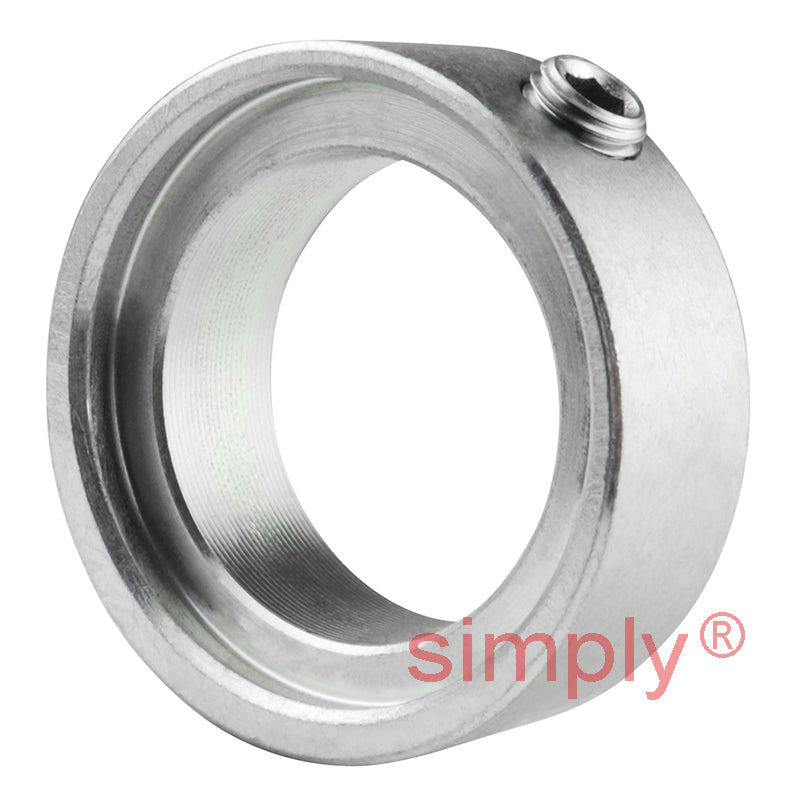

INA RAE..-NPP-NR Series Inserts: Bearing insert with parallel outer race, P seals, eccentric collar and slots in the outer ring. The bearing is supplied with one snap ring to DIN 5 417 already fitted. These ball bearings are greased and cannot be re-lubricated. Operating temperature range: -20 deg C to +120 deg C. Benefits: Accommodates snap rings. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 35.8mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B1 | 35.8mm |
| A | 4.98mm |
| Tolerance | -0.3 |
| a | 1.7mm |
| B | 23.8mm |
| C | 18mm |
| D2 | 67.7mm |
| d2 | 37.4mm |
| d3 max | 44mm |
| S | 9mm |
| W | 4mm |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Weight | 0.33 kg |
