SKU: RABRB20/52-FA106-INA

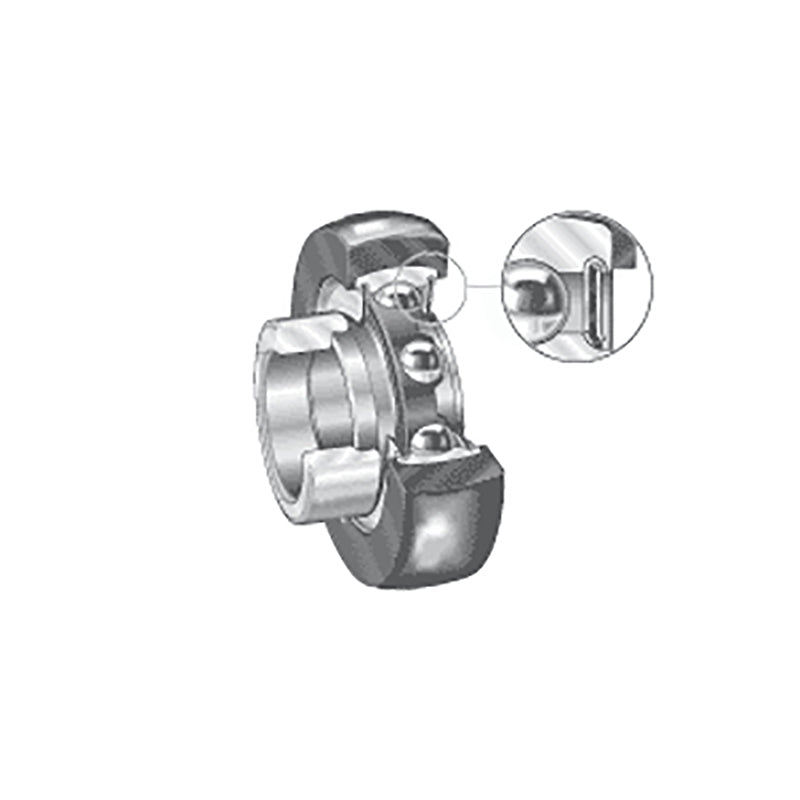

INA RABRB20/52XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x52.3x32.3mm
INA RABRB20/52XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x52.3x32.3mm
Regular price
€36,71
ex VAT
Regular price
Sale price
€36,71
ex VAT
In stock
Price Break
10+
€32,67
19+
€30,84
29+
€30,47
39+
€30,10
49+
€29,74
74+
€29,37
99+
€27,53
199+
€27,17
249+
€26,80
499+
€26,43
999+
€25,70
Couldn't load pickup availability
Description
Description
|
INA RABRA and RABRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52.3mm
- Width:
- 32.3mm
- Type:
- Spherical Outer
Technical
Technical
| d | 20mm |
|---|---|
| D | 52.3mm |
| B2 | 32.3mm |
| B1 | 31mm |
| C | 17.6mm |
| D2 | 39mm |
| d3 max | 33mm |
| S1 | 23.5mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 1160 N |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Designation of rubber interliner | RABR47/52 |
| Designation of bearing | RAE20-NPP-B-FA106 |
| Weight | 0.2 kg |
