SKU: RA108-NPP-INA

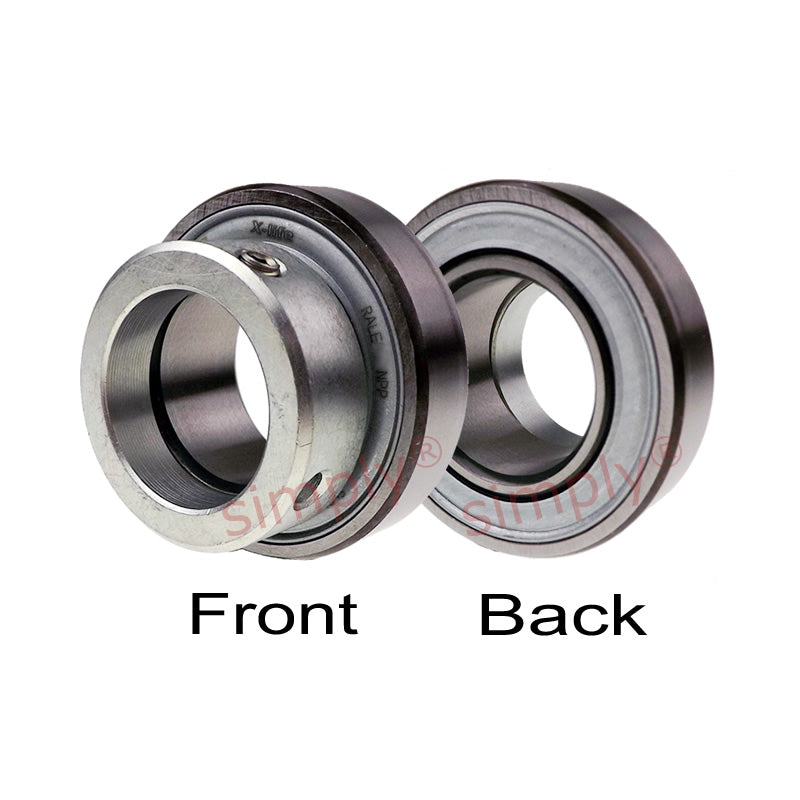

INA RA108NPP Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 38.1x80x43.8mm
INA RA108NPP Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 38.1x80x43.8mm
Regular price
€46,67
ex VAT
Regular price
Sale price
€46,67
ex VAT
In stock
Price Break
3+
€35,55
5+
€33,55
10+
€33,15
15+
€32,75
20+
€32,35
30+
€31,95
40+
€29,96
50+
€29,56
60+
€29,16
75+
€28,76
100+
€27,96
Description
Description
|
INA RA..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Width:
- 43.8mm
Technical
Technical
| d | 38.1mm |
|---|---|
| d | 1-1/2 inch |
| D | 80mm |
| B1 | 43.8mm |
| B | 30.2mm |
| C | 21mm |
| d2 | 49.4mm |
| d3 max | 58mm |
| S | 11mm |
| W | 3/16 inch |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.62 kg |
