SKU: PSM162012A51-SKF

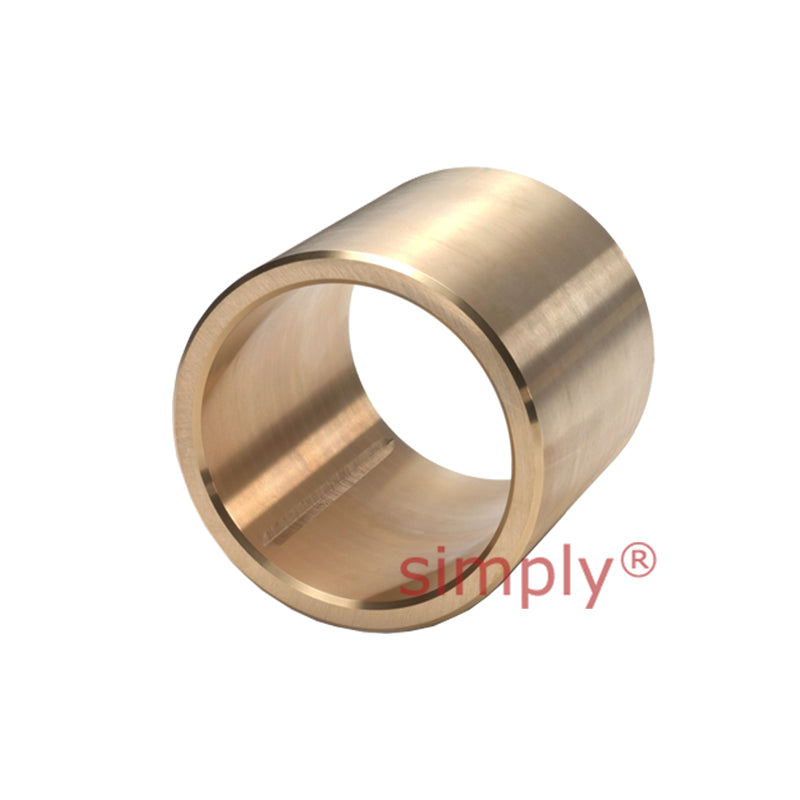

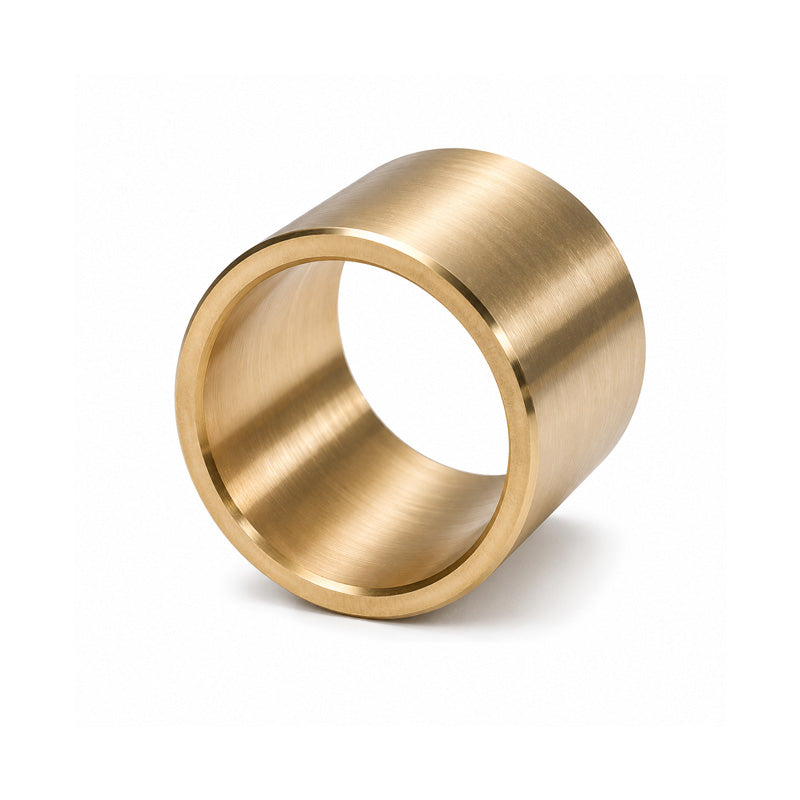

SKF PSM162012A51 Metric Plain Sintered Bronze Bush 16x20x12mm
SKF PSM162012A51 Metric Plain Sintered Bronze Bush 16x20x12mm
Regular price
€4,21
ex VAT
Regular price
Sale price
€4,21
ex VAT
Low stock
Price Break
9+
€3,20
19+
€3,02
29+
€2,99
39+
€2,95
49+
€2,92
69+
€2,88
99+
€2,70
199+
€2,66
249+
€2,63
499+
€2,59
999+
€2,52
Share this product
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 20mm
- Length:
- 12mm
Technical
Technical
| d | 16mm |
|---|---|
| D | 20mm |
| B | 12mm |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 10 N/mm 2 |
| Specific Static Load Factor ( K0 ) | 20 N/mm 2 |
| Permissable Sliding Velocity ( v ) | min. 0.25 m/s |
| Permissable Sliding Velocity ( v ) | max. 5 m/s |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Weight | 0.009kg |
