SKU: PSHE20-TV-FA125.5-INA

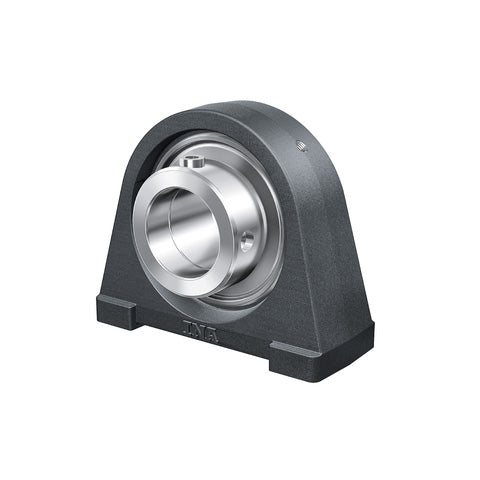

INA PSHE20TVFA125.5 Plastic Threaded Base Plummer Block Housing with Eccentric Collar and Anti-Corrosion Protection 20mm Bore
INA PSHE20TVFA125.5 Plastic Threaded Base Plummer Block Housing with Eccentric Collar and Anti-Corrosion Protection 20mm Bore
Regular price
€69,89
ex VAT
Regular price
Sale price
€69,89
ex VAT
In stock
Price Break
4+
€53,23
9+
€50,24
19+
€49,64
29+
€49,04
39+
€48,45
49+
€47,85
59+
€44,86
69+
€44,26
79+
€43,66
89+
€43,06
99+
€41,87
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This plastic housing is a single-piece unit which features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a short base and is screw mounted to the adjacent construction by blind threaded holes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. The insert bearing has a Corrotect® coating which makes this suitable for use if moisture, contaminated water, salt spray mist, weakly alkaline or weakly acidic cleaning agents are present. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft, corrosion-resistant. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Style:
- PSHE
- Bolt Hole Centres:
- 50.8mm
Technical
Technical
| d | 20mm |
|---|---|
| L | 72.8mm |
| H2 | 66mm |
| A | 34.5mm |
| B1 | 31mm |
| d3 max | 33mm |
| H | 33.3mm |
| J | 50.8mm |
| K | M8 |
| Q | 1/4 - 28 UNF |
| S1 | 23.5mm |
| Mass | 0.3 kg |
| Basic dynamic load rating Cr | 13600 N |
| Basic static load rating Cor | 6600 N |
| Load carrying capacity of housing Cor G | 6900 N |
| Designation of housing | GEH.SHE04-TV |
| Designation of bearing | GRAE20-NPP-B-FA107/125.5 |
| Bearing end cap, closed design | KASK04-S-G |
| Bearing end cap (available by agreement) | KASK04-S-R-NBR |
