SKU: POS30.EU

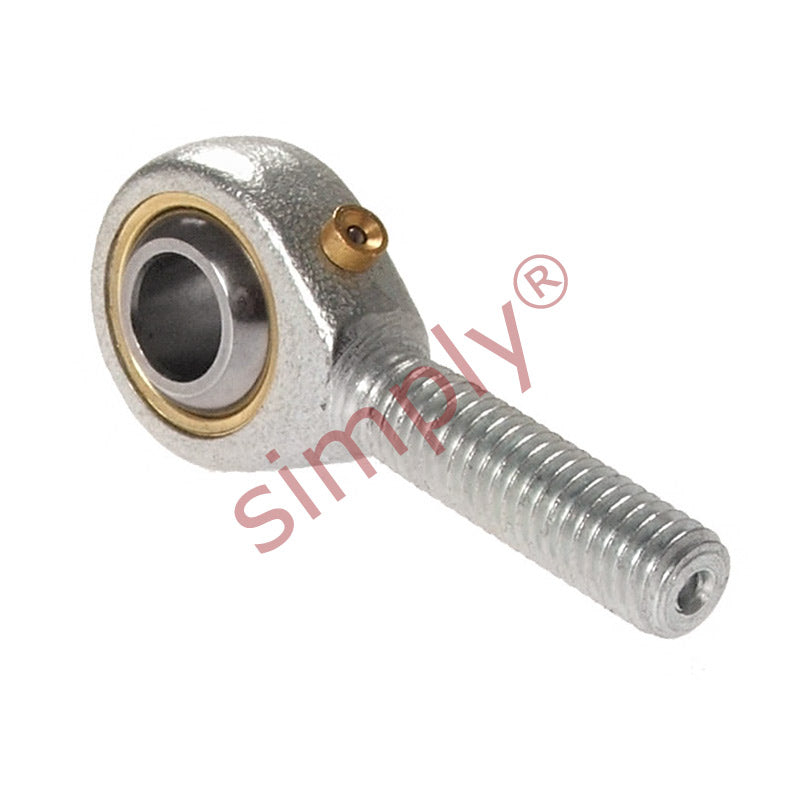

Budget POS30 Right Hand Steel / Bronze Lined Plain Male Rod End 30mm Bore M30x2 Thread
Budget POS30 Right Hand Steel / Bronze Lined Plain Male Rod End 30mm Bore M30x2 Thread
Regular price
€69,27
ex VAT
Regular price
Sale price
€69,27
ex VAT
Equivalent to: GAKFR30PB SAKAC30M SM30 MB-M30
In stock
Price Break
10+
€61,65
19+
€58,19
29+
€57,49
39+
€56,80
49+
€56,11
74+
€55,42
99+
€51,95
199+
€51,26
249+
€50,57
499+
€49,87
999+
€48,49
Couldn't load pickup availability
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: GAKFR30PB SAKAC30M SM30 MB-M30
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M30x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 30mm
- Liner Type:
- Bronze Lined
Technical
Technical
| d | 30mm |
|---|---|
| B | 37mm |
| r1 | 0.6mm |
| C1 | 25mm |
| d1 max | 34.8mm |
| d2 | 70mm |
| d3 | M30x2 |
| h | 110mm |
| l1 | 66mm |
| l2 | 145mm |
| Ball diameter | 2 inch |
| Dynamic load Cr | 63.5 kN |
| Static load Cor | 94 kN |
| Max angle α | 17 |
| Weight | 1.07 kg |
