SKU: PHS6L.EU

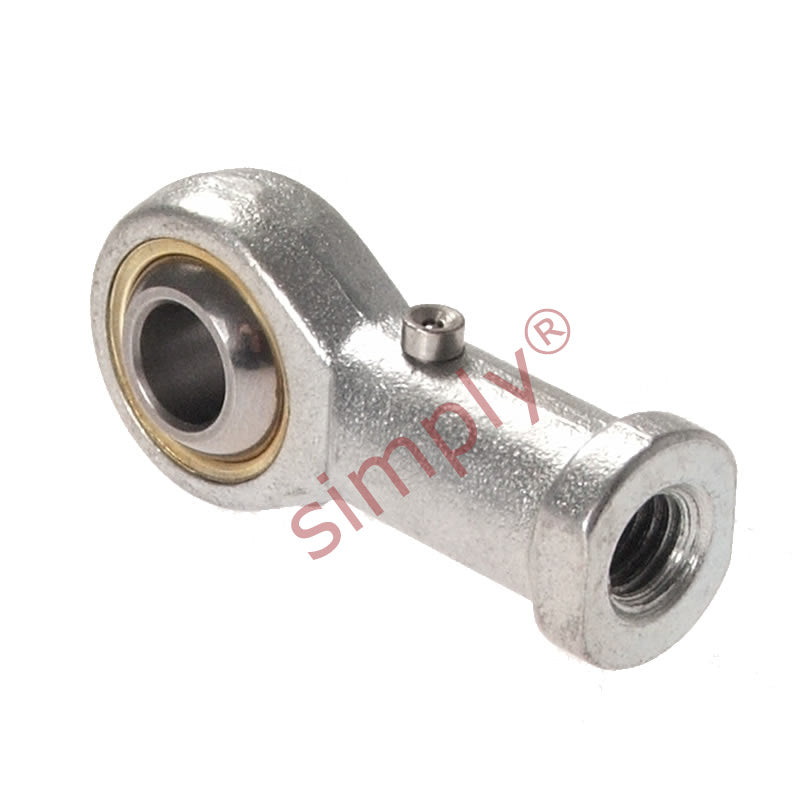

Budget PHS6L Left Hand Steel / Bronze Lined Plain Female Rod End 6mm Bore M6x1 Thread

Name: Budget PHS6L Left Hand Steel / Bronze Lined Plain Female Rod End 6mm Bore M6x1 Thread
Brand: Gen
SKU: PHS6L.EU
Price: 5.45 EUR
Availability: InStock

€5,45 ex VAT

Sale Sold out

Equivalent to: SILKAC6M FBL-M06

In stock

Price Break

10+ €4,14

19+ €3,91

29+ €3,86

39+ €3,82

49+ €3,77

74+ €3,72

99+ €3,49

199+ €3,45

249+ €3,40

499+ €3,35

999+ €3,26

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Equivalent: SILKAC6M FBL-M06

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M6x1
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 6mm
Material:: Bronze Lined

Technical

d	6mm
B	9mm
r1	0.3mm
C1	6.75mm
d1 max	8.9mm
d2	18mm
d3	M6x1
h1	30mm
L3	13mm
L4	39mm
L5	5mm
d4	10mm
d5	13mm
S	11mm
Ball diameter	1/2 inch
Dynamic load Cr	4.3 kN
Static load Cor	7.1 kN
Max angle α	13
Weight	0.025 kg
