SKU: PHS14L.EU

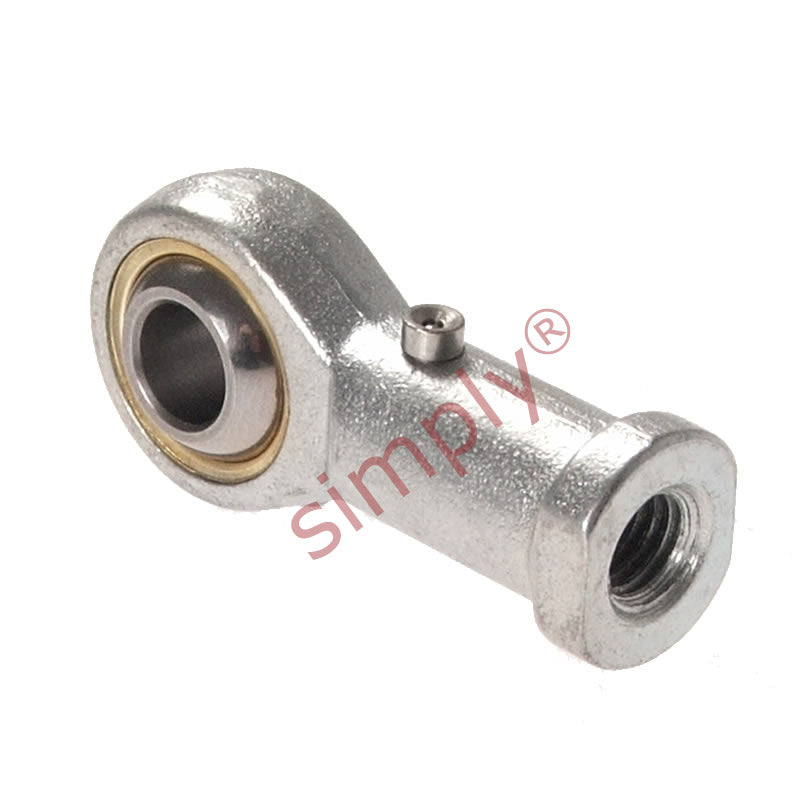

Budget PHS14L Left Hand Steel / Bronze Lined Plain Female Rod End 14mm Bore M14x2 Thread

Name: Budget PHS14L Left Hand Steel / Bronze Lined Plain Female Rod End 14mm Bore M14x2 Thread
Brand: Gen
SKU: PHS14L.EU
Price: 8.66 EUR
Availability: InStock

€8,66 ex VAT

Sale Sold out

Equivalent to: SILKAC14M FBL-M14

In stock

Price Break

10+ €6,59

19+ €6,22

29+ €6,15

39+ €6,08

49+ €6,00

74+ €5,93

99+ €5,56

199+ €5,48

249+ €5,41

499+ €5,34

999+ €5,19

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Equivalent: SILKAC14M FBL-M14

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M14x2
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 14mm
Material:: Bronze Lined

Technical

d	14mm
B	19mm
r1	0.6mm
C1	13.5mm
d1 max	16.8mm
d2	34mm
d3	M14x2
h1	57mm
L3	27mm
L4	74mm
L5	8mm
d4	20mm
d5	25mm
S	22mm
Ball diameter	1 inch
Dynamic load Cr	17.1 kN
Static load Cor	21.3 kN
Max angle α	16
Weight	0.16 kg
