SKU: PBY30-XL-INA

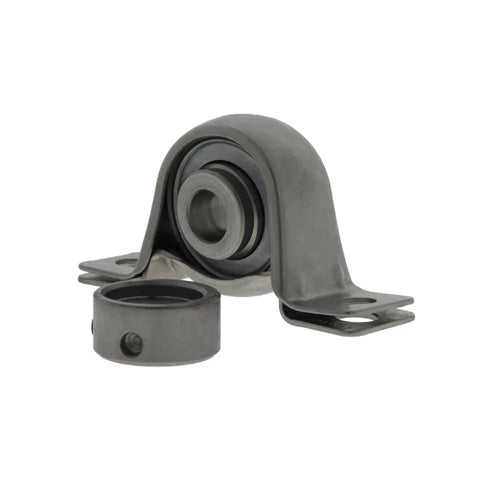

INA PBY30XL Sheet Steel Plummer Block Housing with Grub Screw Insert 30mm Bore
INA PBY30XL Sheet Steel Plummer Block Housing with Grub Screw Insert 30mm Bore
Regular price
€36,62
ex VAT
Regular price
Sale price
€36,62
ex VAT
In stock
Price Break
4+
€27,89
9+
€26,33
19+
€26,01
29+
€25,70
39+
€25,39
49+
€25,07
59+
€23,51
69+
€23,19
79+
€22,88
89+
€22,56
99+
€21,94
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, housing is corrosion-resistant, grub screw fixing. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Style:
- PBY
- Bolt Hole Centres:
- 95mm
Technical
Technical
| d | 30mm |
|---|---|
| L | 117.5mm |
| H2 | 66.1mm |
| A | 38mm |
| A1 | 26.5mm |
| B | 30mm |
| H | 33.3mm |
| H1 | 4mm |
| J | 95mm |
| N | 11.5mm |
| S1 | 21mm |
| Mass | 0.4 kg |
| Load carrying capacity of housing Cor G | 2700 N |
| Basic dynamic load rating Cr | 20700 N |
| Basic static load rating Cor | 11300 N |
| Designation of housing | GEH62-BT? |
| Designation of bearing | AY30-XL-NPP-B? |
