SKU: PBY15-XL-INA

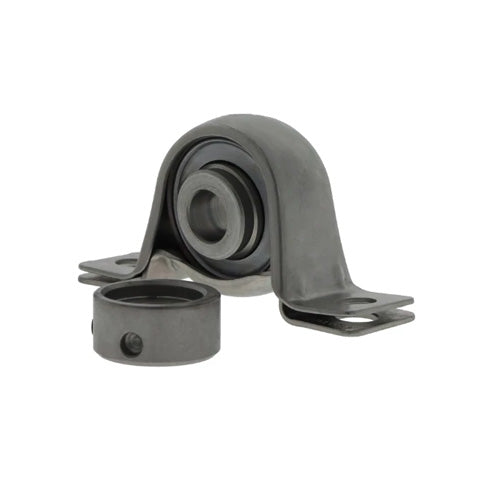

INA PBY15XL Sheet Steel Plummer Block Housing with Grub Screw Insert 15mm Bore
INA PBY15XL Sheet Steel Plummer Block Housing with Grub Screw Insert 15mm Bore
Regular price
€24,84
ex VAT
Regular price
Sale price
€24,84
ex VAT
In stock
Price Break
4+
€18,92
9+
€17,86
19+
€17,65
29+
€17,43
39+
€17,22
49+
€17,01
59+
€15,95
69+
€15,73
79+
€15,52
89+
€15,31
99+
€14,88
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, housing is corrosion-resistant, grub screw fixing. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 15mm
- Style:
- PBY
- Bolt Hole Centres:
- 68mm
Technical
Technical
| d | 15mm |
|---|---|
| L | 85.7mm |
| H2 | 43.2mm |
| A | 25.4mm |
| A1 | 18.4mm |
| B | 22mm |
| H | 22.2mm |
| H1 | 2.6mm |
| J | 68mm |
| N | 9.5mm |
| S1 | 16mm |
| Mass | 0.15 kg |
| Load carrying capacity of housing Cor G | 1350 N |
| Basic dynamic load rating Cr | 10100 N |
| Basic static load rating Cor | 4750 N |
| Designation of housing | GEH40-BT? |
| Designation of bearing | AY15-XL-NPP-B? |
