SKU: PB30-XL-INA

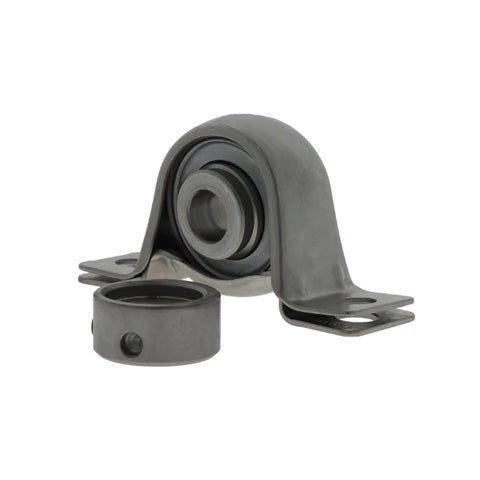

INA PB30XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 30mm Bore
INA PB30XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 30mm Bore
Regular price
€41,07
ex VAT
Regular price
Sale price
€41,07
ex VAT
In stock
Price Break
10+
€36,55
19+
€34,50
29+
€34,09
39+
€33,68
49+
€33,27
74+
€32,86
99+
€30,80
199+
€30,39
249+
€29,98
499+
€29,57
999+
€28,75
Couldn't load pickup availability
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, housing has Corrotect® coating, eccentric collar. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Style:
- PB
- Bolt Hole Centres:
- 95mm
Technical
Technical
| d | 30mm |
|---|---|
| L | 117.5mm |
| H2 | 66.1mm |
| A | 38mm |
| A1 | 26.5mm |
| B1 | 35.8mmd3 max |
| 44mm | H |
| 33.3mm | H1 |
| 4mm | J |
| 95mm | N |
| 11.5mm | S1 |
| 26.8mm | Mass |
| 0.5 kg | Load carrying capacity of housing Cor G |
| 2700 N | Basic dynamic load rating Cr |
| 20700 N | Basic static load rating Cor |
| 11300 N | Designation of housing |
| GEH62-BT? | Designation of bearing |
| RAE30-XL-NPP-B? | N/A |
