SKU: PB25-XL-INA

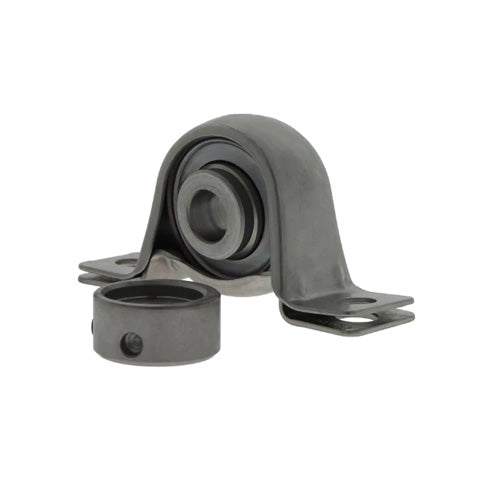

INA PB25XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 25mm Bore
INA PB25XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 25mm Bore
Regular price
€35,19
ex VAT
Regular price
Sale price
€35,19
ex VAT
In stock
Price Break
4+
€26,80
9+
€25,29
19+
€24,99
29+
€24,69
39+
€24,39
49+
€24,09
59+
€22,58
69+
€22,28
79+
€21,98
89+
€21,68
99+
€21,08
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, housing has Corrotect® coating, eccentric collar. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Style:
- PB
- Bolt Hole Centres:
- 86mm
Technical
Technical
| d | 25mm |
|---|---|
| L | 108mm |
| H2 | 56.5mm |
| A | 31.8mm |
| A1 | 23.5mm |
| B1 | 31mmd3 max |
| 37.5mm | H |
| 28.6mm | H1 |
| 4mm | J |
| 86mm | N |
| 11.5mm | S1 |
| 23.5mm | Mass |
| 0.3 kg | Load carrying capacity of housing Cor G |
| 1800 N | Basic dynamic load rating Cr |
| 14900 N | Basic static load rating Cor |
| 7800 N | Designation of housing |
| GEH52-BT? | Designation of bearing |
| RAE25-XL-NPP-B? | N/A |
