SKU: PB20-XL-INA

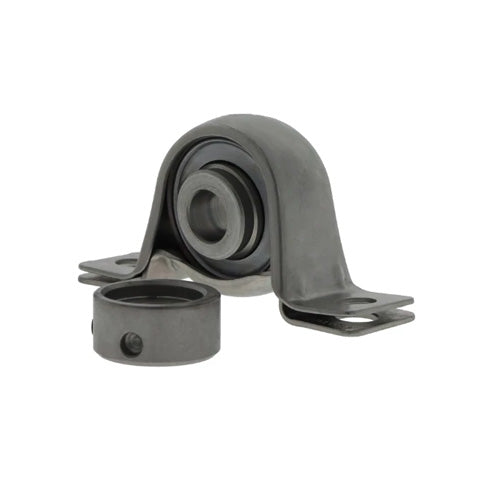

INA PB20XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 20mm Bore
INA PB20XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 20mm Bore
Regular price
€32,39
ex VAT
Regular price
Sale price
€32,39
ex VAT
In stock
Price Break
4+
€24,67
9+
€23,28
19+
€23,01
29+
€22,73
39+
€22,45
49+
€22,18
59+
€20,79
69+
€20,51
79+
€20,24
89+
€19,96
99+
€19,40
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, housing has Corrotect® coating, eccentric collar. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Style:
- PB
- Bolt Hole Centres:
- 76mm

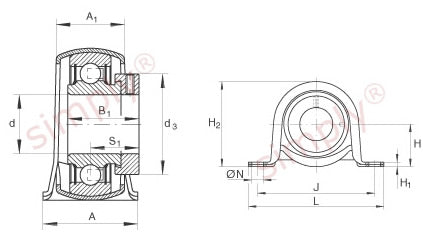

Technical
Technical
| d | 20mm |
|---|---|
| L | 98.4mm |
| H2 | 50.1mm |
| A | 31.8mm |
| A1 | 22.3mm |
| B1 | 31mmd3 max |
| 33mm | H |
| 25.4mm | H1 |
| 3.3mm | J |
| 76mm | N |
| 9.5mm | S1 |
| 23.5mm | Mass |
| 0.27 kg | Load carrying capacity of housing Cor G |
| 1600 N | Basic dynamic load rating Cr |
| 13600 N | Basic static load rating Cor |
| 6600 N | Designation of housing |
| GEH47-BT? | Designation of bearing |
| RAE20-XL-NPP-B? | N/A |
