SKU: NUP307-EU
NUP307 Budget Single Row Cylindrical Roller Bearing 35x80x21mm
NUP307 Budget Single Row Cylindrical Roller Bearing 35x80x21mm
Regular price
€12,12
ex VAT
Regular price
Sale price
€12,12
ex VAT
In stock
Price Break
10+
€9,23
19+
€8,71
29+
€8,61
39+
€8,50
49+
€8,40
74+
€8,30
99+
€7,78
199+
€7,67
249+
€7,57
499+
€7,47
999+
€7,26
Description
Description
|

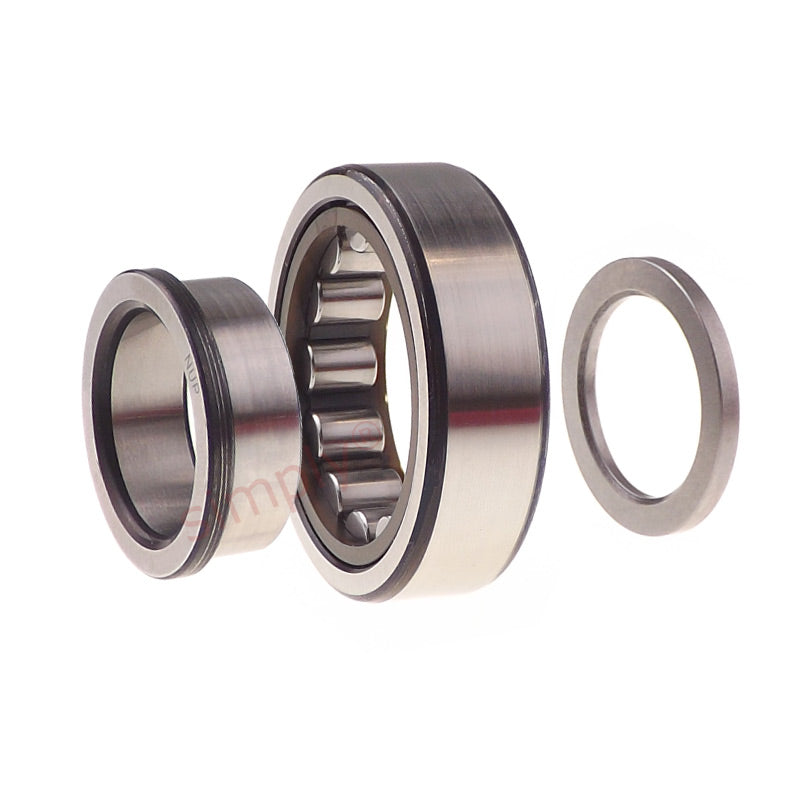

NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 80mm |
| B | 21mm |
| Dynamic load C | 75 kN |
| Static load Co | 63 kN |
| Fatigue load limit Pu | 8.15 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.5 kg |
| Cage options | J.M.ML |
| d1 | 51mm |
| D1 | 66.3mm |
| F, E | 46.2mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.1mm |
| da min | 44mm |
| db min | 53mm |
| Da max | 71mm |
| ra max | 1.5mm |
| rb max | 1mm |
| kr | 0.15 |
