SKU: NU319ECM/C3VL0241-SKF

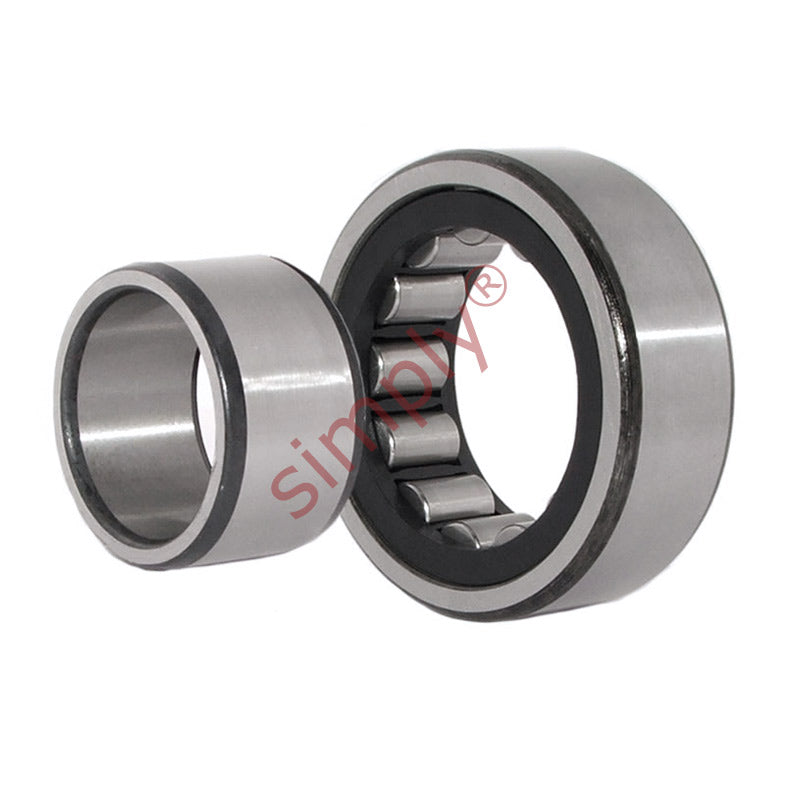

SKF NU319ECMC3VL0241 Insocoat Cylindrical Roller Bearing 95x200x45mm
SKF NU319ECMC3VL0241 Insocoat Cylindrical Roller Bearing 95x200x45mm
Regular price
€1.870,36
ex VAT
Regular price
Sale price
€1.870,36
ex VAT
In stock
Price Break
10+
€1.664,62
19+
€1.571,10
29+
€1.552,40
39+
€1.533,70
49+
€1.514,99
74+
€1.496,29
99+
€1.402,77
199+
€1.384,07
249+
€1.365,36
499+
€1.346,66
999+
€1.309,25
Couldn't load pickup availability
Description
Description
|
SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) Benefits: Electrically insulated |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 200mm
- Width:
- 45mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 95mm |
|---|---|
| D | 200mm |
| B | 45mm |
| Dynamic load C | 390 kN |
| Static load Co | 390 kN |
| Fatigue load limit Pu | 46.5 kN |
| Reference speed | 3600 rpm |
| Limiting speed | 4300 rpm |
| Weight | 7.25 kg |
| D1 | 170mm |
| F | 121.5mm |
| r1r2 min | 3mm |
| r1r4 min | 3mm |
| s | 2.9mm |
| da min | 109mm |
| da max | 118mm |
| db min | 124mm |
| Da min | 175mm |
| Da max | 186mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
