SKU: NU315ECP/VL0241-SKF

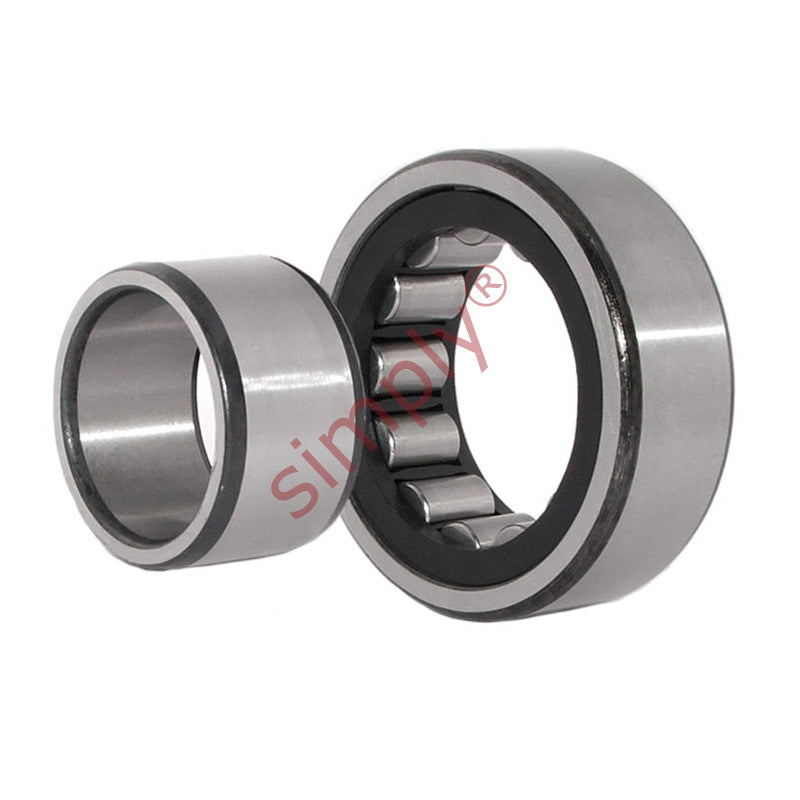

SKF NU315ECPVL0241 Insocoat Cylindrical Roller Bearing 75x160x37mm
SKF NU315ECPVL0241 Insocoat Cylindrical Roller Bearing 75x160x37mm
Regular price
€1.183,37
ex VAT
Regular price
Sale price
€1.183,37
ex VAT
In stock
Price Break
10+
€1.053,20
19+
€994,03
29+
€982,20
39+
€970,36
49+
€958,53
74+
€946,70
99+
€887,53
199+
€875,69
249+
€863,86
499+
€852,03
999+
€828,36
Couldn't load pickup availability
Description
Description
|
SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) Benefits: Electrically insulated |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 75mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dynamic load C | 280 kN |
| Static load Co | 265 kN |
| Fatigue load limit Pu | 33.5 kN |
| Reference speed | 4500 rpm |
| Limiting speed | 5300 rpm |
| Weight | 3.3 kg |
| D1 | 136mm |
| F | 95mm |
| r1r2 min | 2.1mm |
| r1r4 min | 2.1mm |
| s | 1.8mm |
| da min | 87mm |
| da max | 92mm |
| db min | 97mm |
| Da min | 141mm |
| Da max | 148mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
