SKU: NU1028ML-EU

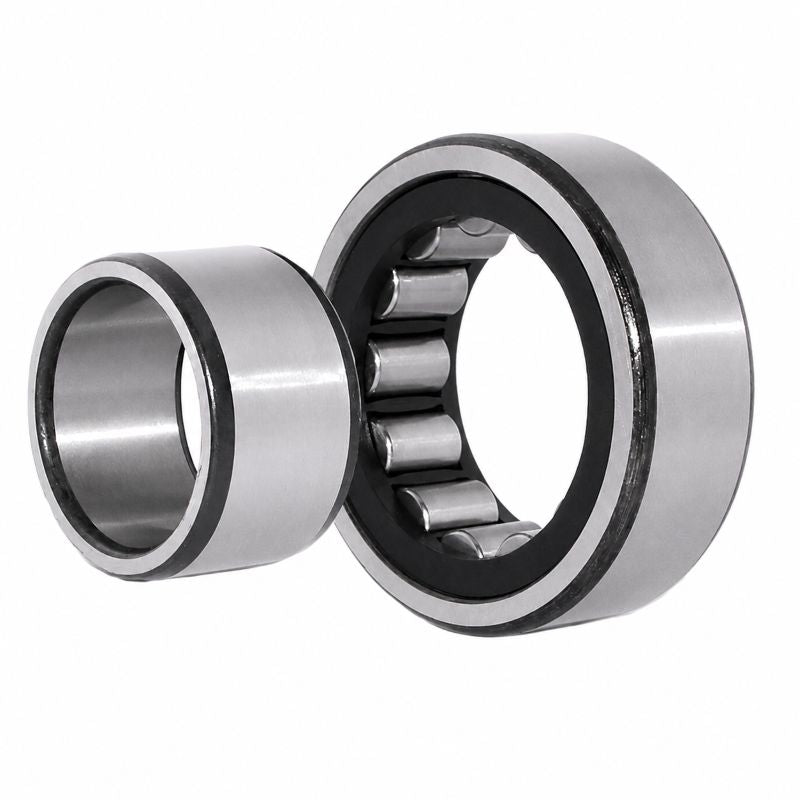

NU1028 Budget Single Row Cylindrical Roller Bearing 140x210x33mm
NU1028 Budget Single Row Cylindrical Roller Bearing 140x210x33mm
Regular price
€426,13
ex VAT
Regular price
Sale price
€426,13
ex VAT
In stock
Price Break
10+
€324,54
19+
€306,31
29+
€302,66
39+
€299,02
49+
€295,37
74+
€291,72
99+
€273,49
199+
€269,84
249+
€266,20
499+
€262,55
999+
€255,26
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 210mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 140mm |
|---|---|
| D | 210mm |
| B | 33mm |
| Dynamic load C | 172 kN |
| Static load Co | 245 kN |
| Fatigue load limit Pu | 27 kN |
| Reference speed | 3600 rpm |
| Limiting speed | 5300 rpm |
| Weight | 4.05 kg |
| Cage options | M |
| D1 | 185mm |
| F, E | 158mm |
| r1r2 min | 2mm |
| r3r4 min | 1.1mm |
| s | 4.4mm |
| da min | 146mm |
| da max | 155mm |
| db min | 161mm |
| Da max | 201mm |
| ra max | 2mm |
| rb max | 1mm |
| kr | 0.1 |
