NTA815 Needle Roller Cage Thrust Assembly with 2 TRA815 Washers 0.5x0.937x0.1406 inch
NTA815 Needle Roller Cage Thrust Assembly with 2 TRA815 Washers 0.5x0.937x0.1406 inch
Regular price
€8,03
ex VAT
Regular price
Sale price
€8,03
ex VAT
Equivalent to: NTC815+TRA815
In stock
Price Break
10+
€6,11
19+
€5,77
29+
€5,70
39+
€5,63
49+
€5,56
74+
€5,49
99+
€5,15
199+
€5,08
249+
€5,01
499+
€4,94
999+
€4,81
Description
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Equivalent: NTC815+TRA815
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Width:
- 3.57mm = 0.141 (9/64) inch
Technical
Technical

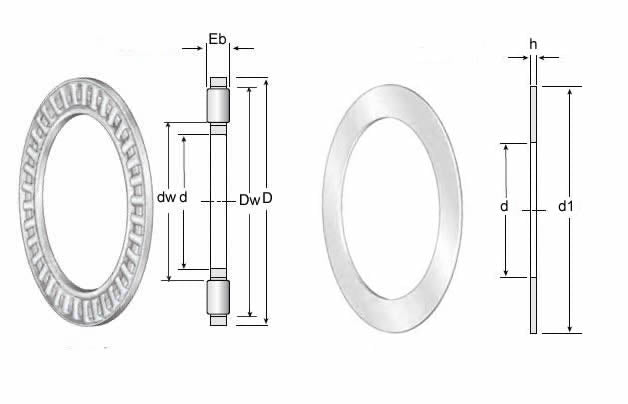

| d | 0.5 inch |
|---|---|
| D | 0.937 inch |
| Eb | 0.0806 inch |
| Dw | 0.59 inch |
| dw | 0.83 inch |
| Dynamic load | 7.16 kN |
| Static load | 19.13 kN |
| Limiting speed | 19000 rpm |
| Weight | 0.00227 kg |
| Washer | Dimensions |
| d | 0.5 inch |
| d1 | 0.937 inch |
| h min | 0.03 inch |
| h max | 0.032 inch |
| Pilot min | 0.497 inch |
| Pilot max | 0.5 inch |
| Dia to clear washer | 0.969 inch |
| Weight | 0.004 lbs |
