SKU: NTA4458

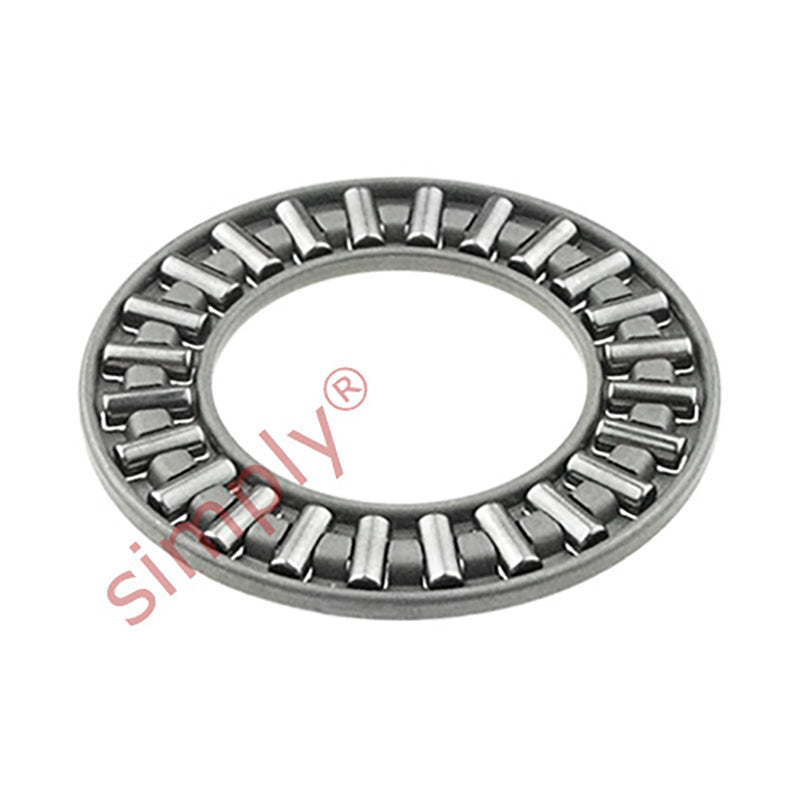

NTA4458 Needle Roller Cage Only 2.75x3.625x0.125 inch
NTA4458 Needle Roller Cage Only 2.75x3.625x0.125 inch
Regular price
€9,62
ex VAT
Regular price
Sale price
€9,62
ex VAT
Equivalent to: NTC4458
In stock
Price Break
10+
€7,32
19+
€6,91
29+
€6,83
39+
€6,74
49+
€6,66
74+
€6,58
99+
€6,17
199+
€6,09
249+
€6,00
499+
€5,92
999+
€5,76
Description
Description
|
NTA Imperial Series Needle Roller Thrust Bearings: Needle roller cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the TR series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Equivalent: NTC4458
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Outside Diameter:
- 92.08mm = 3.625 (3-5/8) inch
- Width:
- 3.18mm = 0.125 (1/8) inch
Technical
Technical
| d | 2.75 inch |
|---|---|
| D | 3.625 inch |
| Eb | 0.125 inch |
| Dw | 3.46 inch |
| dw | 2.86 inch |
| Dynamic load | 47.60 kN |
| Static load | 255.80 kN |
| Limiting speed | 4600 rpm |
| Weight | 0.037228 kg |
