SKU: NTA3648

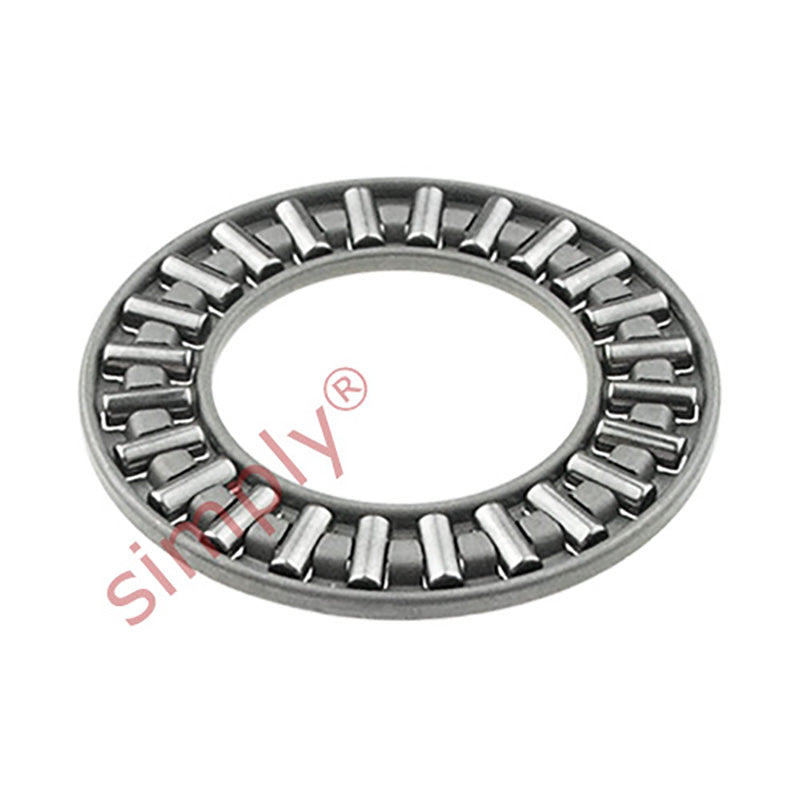

NTA3648 Needle Roller Cage Only 2.25x3x0.0781 inch
NTA3648 Needle Roller Cage Only 2.25x3x0.0781 inch
Regular price
€5,18
ex VAT
Regular price
Sale price
€5,18
ex VAT
Equivalent to: NTC3648
In stock
Price Break
10+
€3,95
19+
€3,72
29+
€3,68
39+
€3,64
49+
€3,59
74+
€3,55
99+
€3,33
199+
€3,28
249+
€3,24
499+
€3,19
999+
€3,10
Description
Description
|
NTA Imperial Series Needle Roller Thrust Bearings: Needle roller cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the TR series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Equivalent: NTC3648
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Outside Diameter:
- 76.2mm = 3 inch
- Width:
- 1.98mm = 0.078 (5/64) inch
Technical
Technical
| d | 2.25 inch |
|---|---|
| D | 3 inch |
| Eb | 0.0781 inch |
| Dw | 2.82 inch |
| dw | 2.34 inch |
| Dynamic load | 24.78 kN |
| Static load | 142.34 kN |
| Limiting speed | 5600 rpm |
| Weight | 0.017252 kg |
