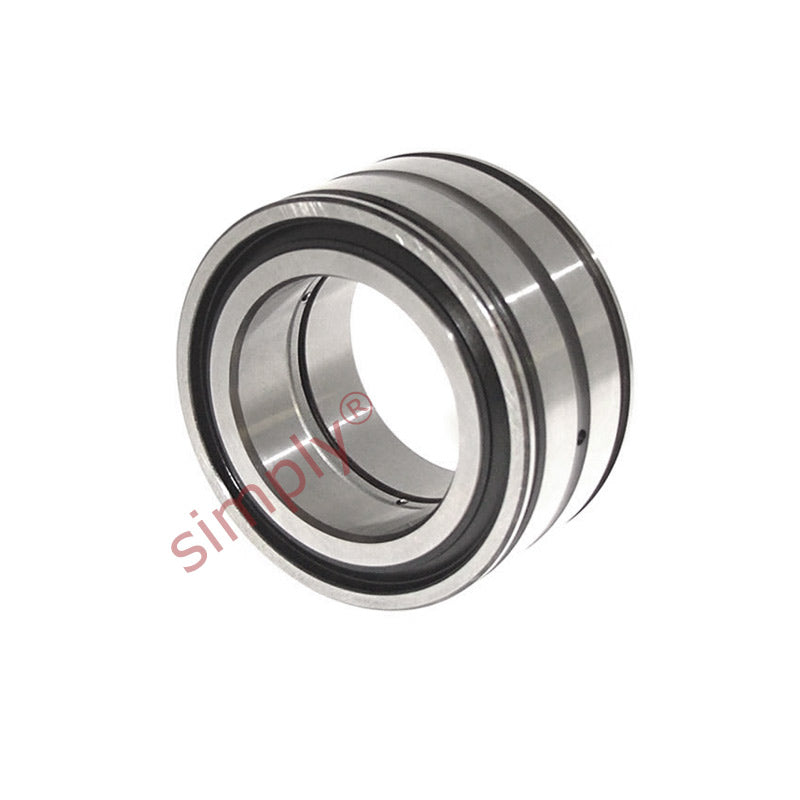

SKF NNF5008ADB2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 40x68x38mm

Name: SKF NNF5008ADB2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 40x68x38mm
Brand: SKF
SKU: NNF5008ADB-2LSV-SKF
Price: 215.98 EUR
Availability: InStock

€215,98 ex VAT

Sale Sold out

In stock

Price Break

10+ €164,49

19+ €155,25

29+ €153,40

39+ €151,55

49+ €149,70

74+ €147,85

99+ €138,61

199+ €136,77

249+ €134,92

499+ €133,07

999+ €129,37

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant

Brand / Quality:: SKF - High Quality
Inside Diameter:: 40mm
Outside Diameter:: 68mm
Width:: 38mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	40mm
D	68mm
B	38mm
C	37mm
Dynamic load C	85.8 kN
Static load Co	116 kN
Fatigue load limit Pu	13.4 kN
Limiting speed	2000 rpm
Weight	0.53 kg
d1	50.5mm
D1	65.8mm
E	61mm
C1+0.2	32.2mm
C2	2.4mm
b	2.7mm
b1	4.5mm
K	3mm
r min	0.8mm
r3r4 min	0.6mm
da min	44mm
das	48.8mm
Da max	63mm
Ca1 - 0.2	28mm
Ca2 - 0.2	27mm
ra max	0.4mm
rb max	0.6mm
Snap ring	SW68
Din 471	68x2.5
