SKU: NNCL4920CV-SKF

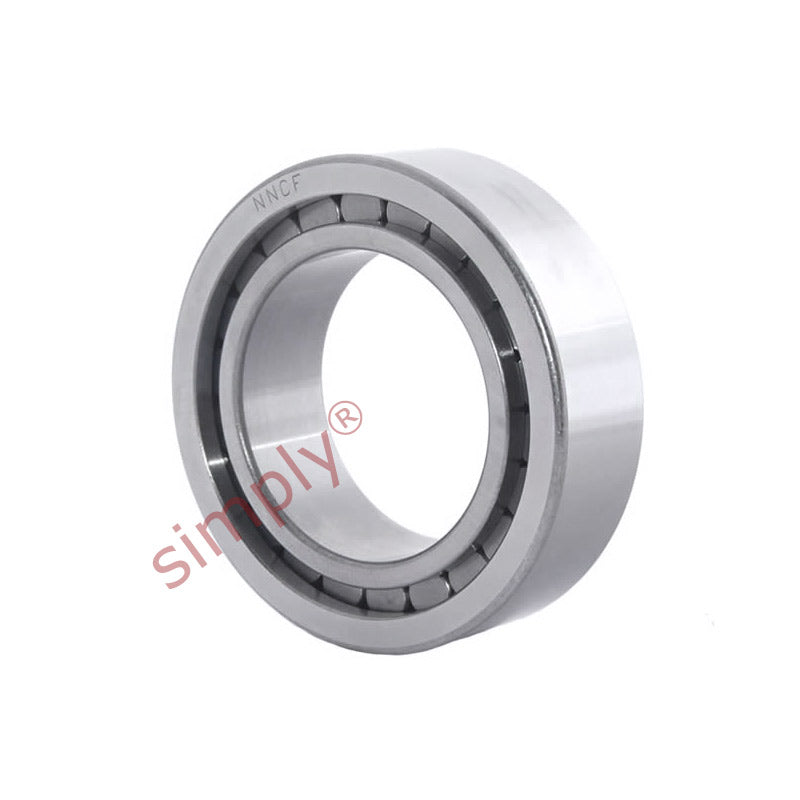

SKF NNCL4920CV Double Row Full Complement Cylindrical Roller Bearing 100x140x40mm - Allow 2-3 Days

Name: SKF NNCL4920CV Double Row Full Complement Cylindrical Roller Bearing 100x140x40mm - Allow 2-3 Days
Brand: SKF
SKU: NNCL4920CV-SKF
Price: 233.17 EUR
Availability: InStock

€233,17 ex VAT

Sale Sold out

Equivalent to: SL024920

In stock

Price Break

10+ €197,53

19+ €189,55

29+ €185,56

39+ €179,58

49+ €175,59

74+ €165,61

99+ €139,67

199+ €0,00

249+ €0,00

499+ €0,00

999+ €0,00

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction.
Benefits: Tolerate axial load in one direction, none separable construction

Equivalent: SL024920

Brand / Quality:: SKF - High Quality
Inside Diameter:: 100mm
Outside Diameter:: 140mm
Width:: 40mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	100mm
D	140mm
B	40mm
Dynamic load C	209 Kn
Static load Co	400 Kn
Fatigue load limit Pu	46.5 Kn
Reference speed	2000 rpm
Limiting speed	2600 rpm
Weight	1.9 kg
d1	116mm
E	129.6mm
b1	5mm
K	3.5mm
r1r2 min	1.1mm
S	2mm
da min	106mm
Da max	134mm
Ra max	1mm
