SKU: NKXR50T2-NTN

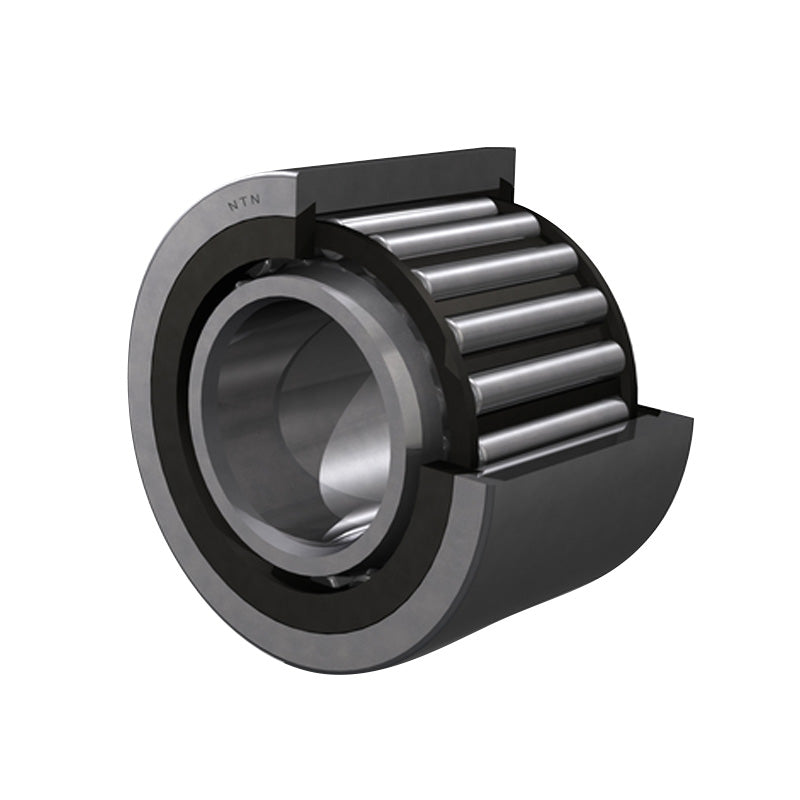

NTN NKXR50T2 Combination Needle Roller Thrust Bearing 50x62x35mm - Allow 2-3 Days
NTN NKXR50T2 Combination Needle Roller Thrust Bearing 50x62x35mm - Allow 2-3 Days
Regular price
€129,48
ex VAT
Regular price
Sale price
€129,48
ex VAT
In stock
Price Break
3+
€109,69
4+
€105,26
9+
€103,04
19+
€99,72
49+
€97,50
99+
€91,96
499+
€77,56
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
NTN Combination Bearings: These bearings deliver exceptional performance, durability, and precision for demanding industrial applications. Designed to handle both radial and axial loads simultaneously, these high-quality bearings combine advanced engineering with NTN’s proven reliability. Their robust construction ensures smooth operation, reduced friction, and long service life even under heavy-duty conditions. Ideal for use in machinery, automotive systems, and various equipment requiring accurate alignment and load distribution, NTN Combination Bearings offer superior efficiency and consistent performance you can trust. Perfect for customers seeking dependable, high-performance bearing solutions. Benefits: Efficiently supports both radial and axial loads, high durability, low friction operation |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 62mm
- Width:
- 35mm
Technical
Technical
| Fw - Inside diameter | 50mm |
|---|---|
| dw - Shaft washer bore diameter | 50mm |
| D - Outside diameter | 62mm |
| D1 - Outer diameter of washer | 70mm |
| C - Width | 35mm |
| C1 - Thrust bearing height | 14mm |
| C2 - Hole location | 10mm |
| a - Thrust bearing support diameter | 65.5mm |
| rs - Minimum fillet radius | 0.6mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 3mm |
| Precision class | P0 |
| Cr - Dynamic load rating | 27.9 kN |
| Ca - Dynamic axial load rating | 48.5 kN |
| C0r - Static load rating | 62 kN |
| C0a - Static axial load rating | 150 kN |
| N - Grease lubrication limit speed | 1000 tr/min |
| N - Oil lubrication limit speed | 4000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
| da min - Inner ring minimum shoulder diameter | 66mm |
| ras max - Maximum shaft & housing fillet radius | 0.6mm |
