SKU: NKXR50-MB

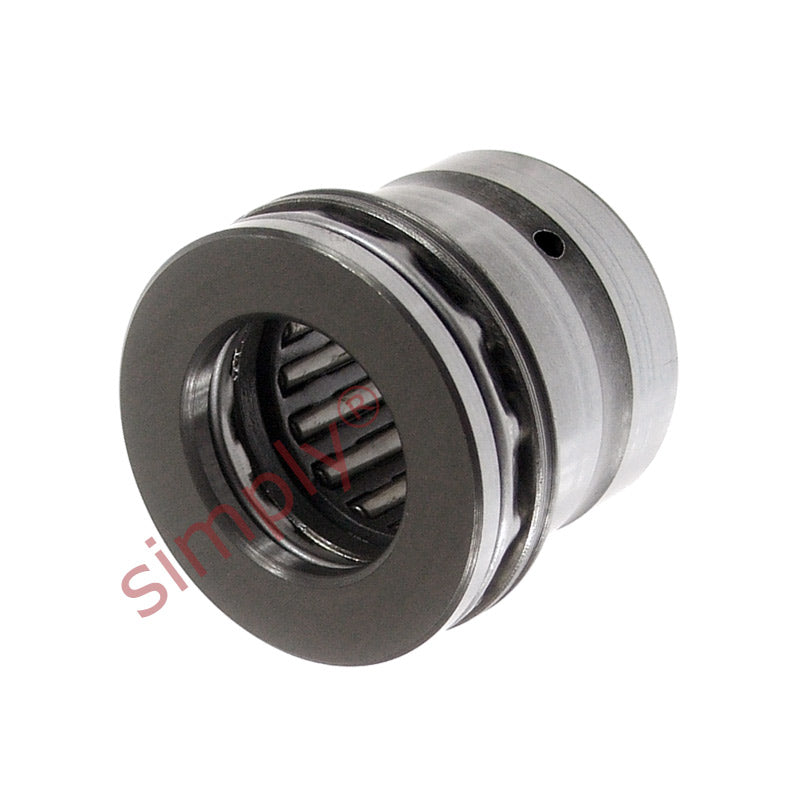

Major Brand NKXR50 Needle Roller Thrust Bearing without Cover 50x62x35mm
Major Brand NKXR50 Needle Roller Thrust Bearing without Cover 50x62x35mm
Regular price
€247,25
ex VAT
Regular price
Sale price
€247,25
ex VAT
In stock
Price Break
10+
€188,31
19+
€177,73
29+
€175,61
39+
€173,50
49+
€171,38
74+
€169,26
99+
€158,69
199+
€156,57
249+
€154,45
499+
€152,34
999+
€148,11
Description
Description
Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 62mm
- Width:
- 35mm
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 62mm |
| C | 35mm |
| Dynamic load | 38000 N |
| Static load | 80000 N |
| Axial dynamic load | 47500 N |
| Axial static load | 166000 N |
| Fatigue load limit radial Pu | 9650 N |
| Fatigue load limit axial Pu | 16600 N |
| Min load factor A | 2.2 |
| Speed in grease | 1600 rpm |
| Speed in oil | 2200 rpm |
| C1 | 14mm |
| C2 | 10mm |
| d | 50 |
